4-106 Finisher Service Manual
4024-XXX
Upper media exit roll assembly removal
1. Open the finisher front door assembly.
2. Remove the rear upper cover. See “Rear upper cover removal” on page 4-24.
3. Remove the top cover. See “Top cover removal” on page 4-19.
4. Remove the drive motor (exit). See “Drive motor (exit) assembly and belt (exit) removal” on
page 4-113.

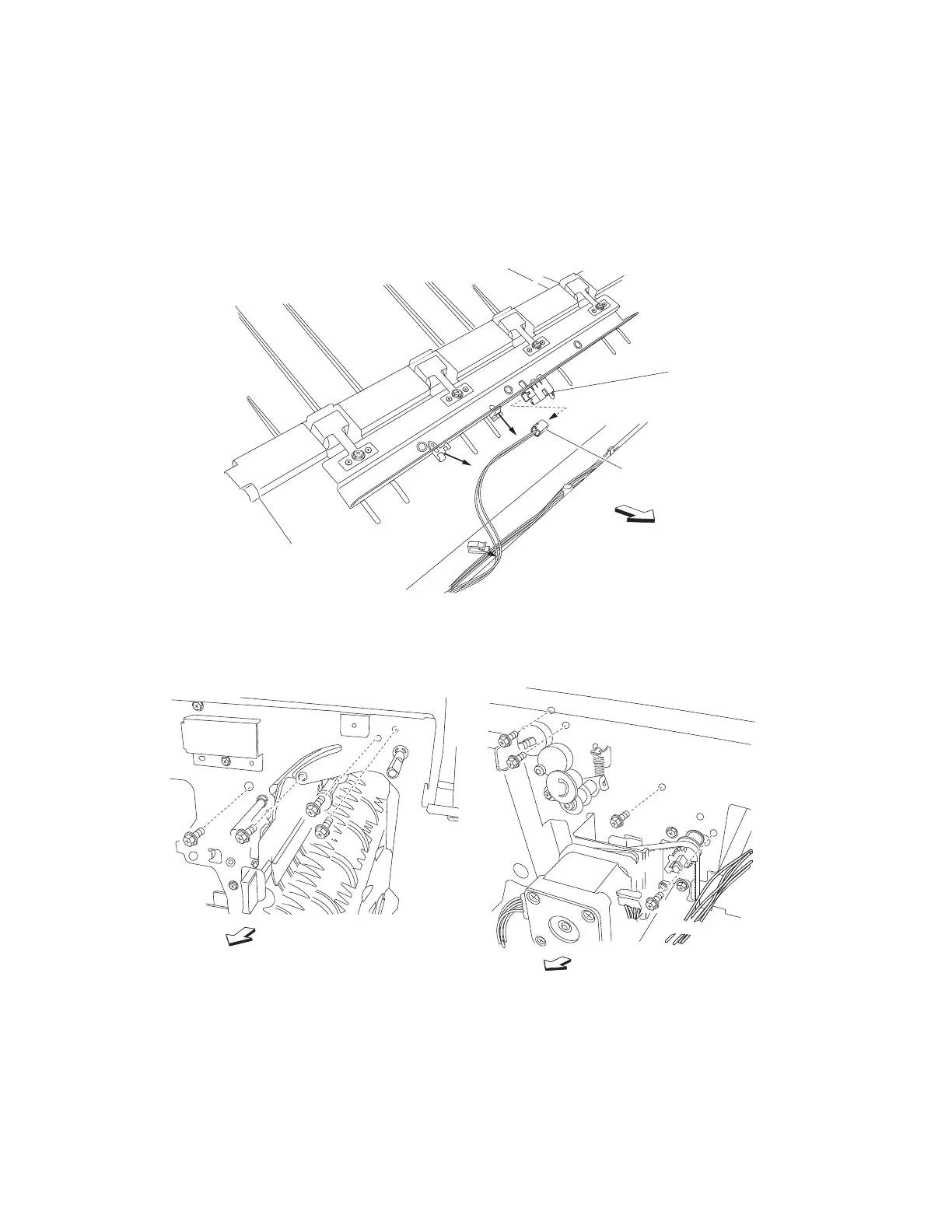

5. Disconnect the connector from the sensor (upper media exit) (A).
6. Release the harness from the clamps.
7. Remove the two front and two rear screws securing the upper exit guide assembly (B).
8. Remove the upper exit guide assembly.
9. Remove the two front screws and the two rear screws securing the bracket (C) to the finisher.
