Repair information 4-45
4024-XXX

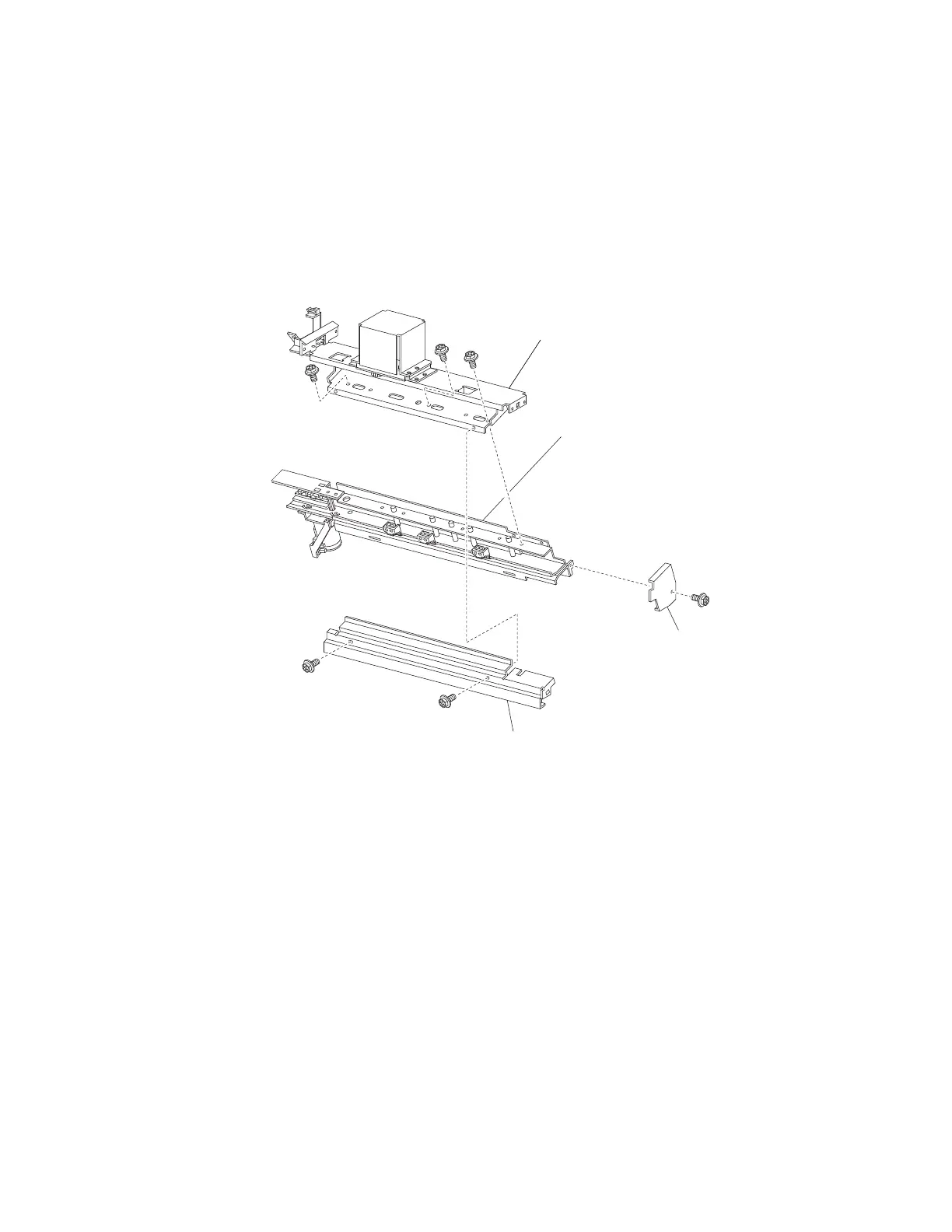

Punch unit assembly removal
1. Open the finisher front door assembly.
2. Remove the rear upper cover. See “Rear upper cover removal” on page 4-24.
3. Remove the punch carriage assembly. See “Punch carriage assembly removal” on page 4-41.
4. Remove the screw securing the cover (A) to the punch unit assembly (B).
5. Remove the cover (A).
6. Remove the two screws securing the bracket (C) to the punch carriage assembly (D).
7. Remove the bracket (C).
8. Remove the three screws securing the punch carriage assembly (D) to the punch unit assembly (B).
9. Remove the punch unit assembly (B)
