Lexmark W850 - Sensor (Bridge Unit Top Cover Interlock) Removal

Repair information 4-15
4024-XXX
Sensor (bridge unit top cover interlock) removal

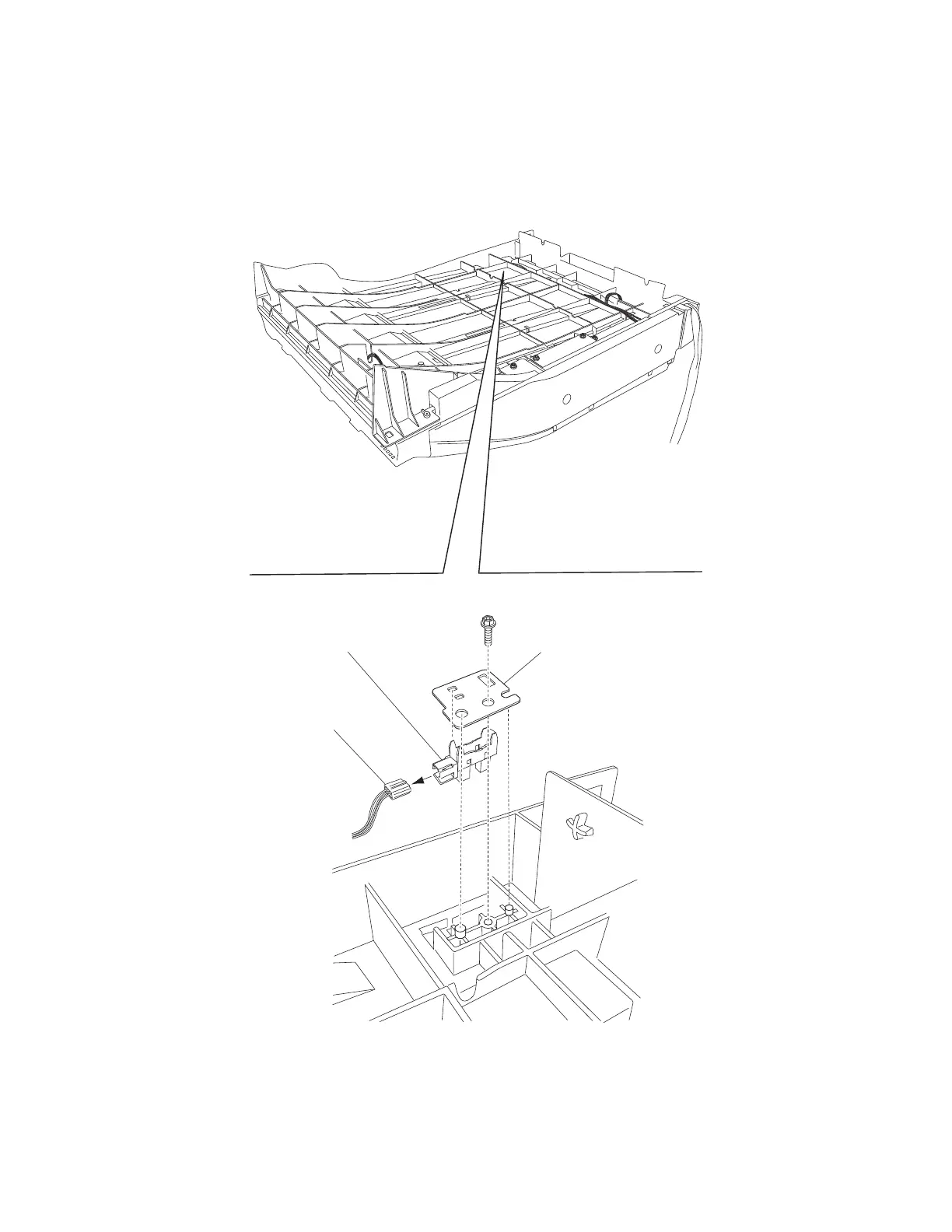

1. Remove the bridge unit assembly. See “Bridge unit assembly removal” on page 4-2.
2. Place the bridge unit assembly upside down.
3. Remove the screw securing the bracket (A) to the bridge unit assembly (B).
4. Disconnect the cable from the sensor (bridge unit top cover interlock) (C).
5. Release the hooks securing the sensor (bridge unit top cover interlock) (C) to the bracket (A).
6. Remove the sensor (bridge unit top cover interlock) (C).
C
B
A
Connector
