4-92 Finisher Service Manual
4024-XXX
Buffer diverter gate removal

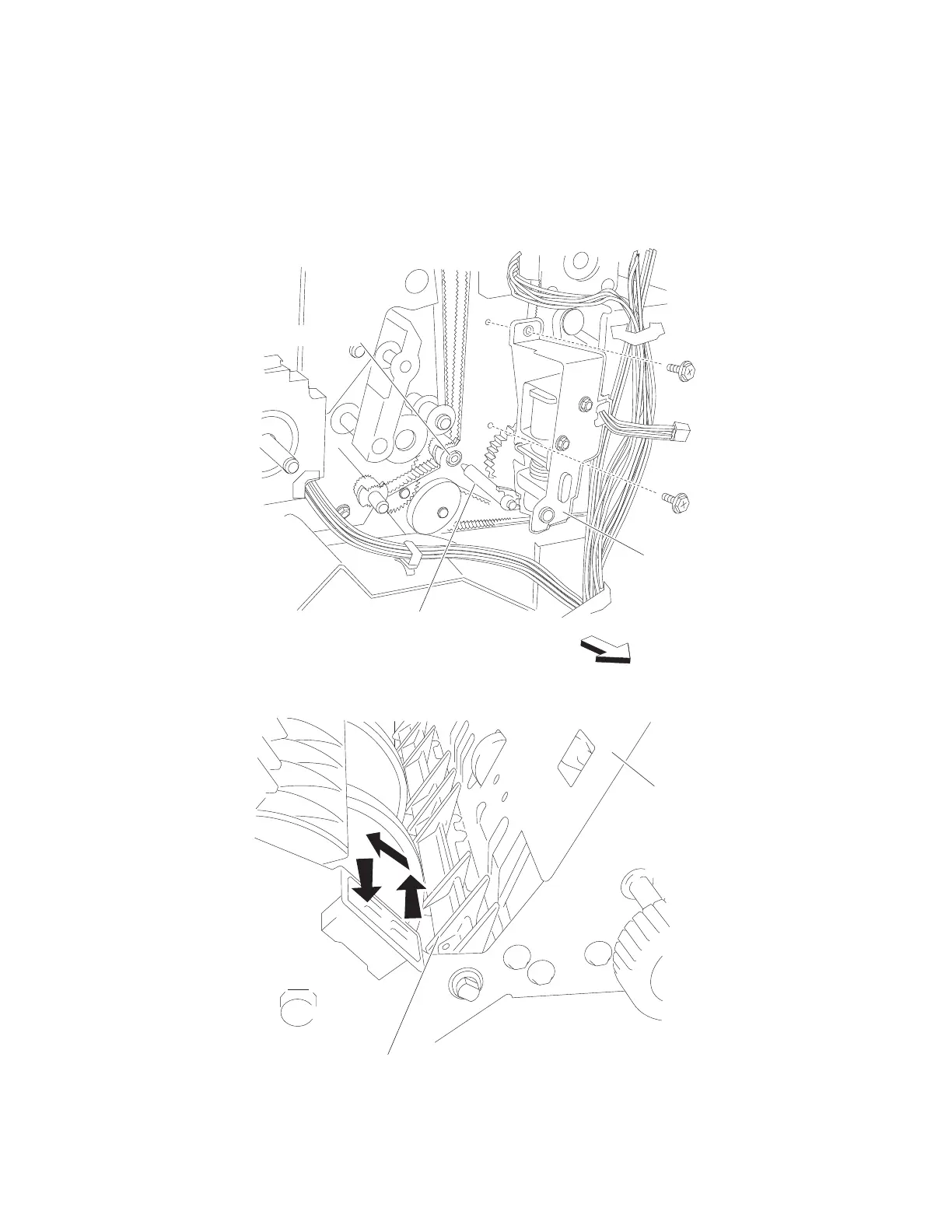

1. Open the finisher front door assembly.
2. Move the lower pinch guide assembly (A) to the right.
3. Remove the rear upper cover. See “Rear upper cover removal” on page 4-24.
4. Remove the buffer diverter gate solenoid. See “Media diverter gate solenoid removal” on page 4-102.
5. Remove the link (D).
6. Move the buffer diverter gate (C) toward the rear, the left, and then forward, as shown.
7. Remove the buffer diverter gate (C).
Buffer diverter gate
A
B
Rear
