Lexmark W850 - Page 191

Repair information 4-39
4024-XXX

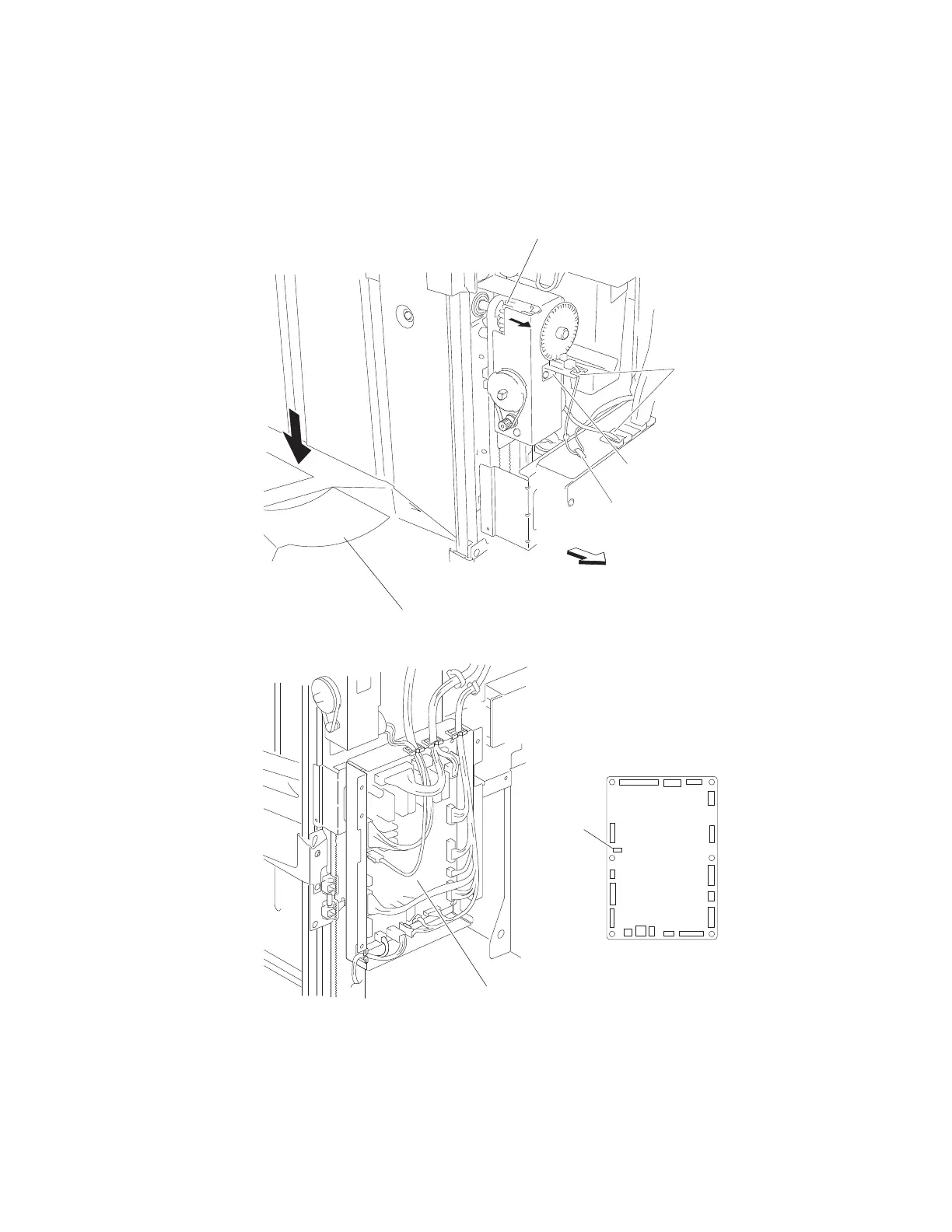

6. Move the slip clutch gear 24T (B) toward the rear to disengage the stacker bin (C).
7. Move the stacker bin (C) to the lowest position.
Note: Make sure the stacker bin (C) is at the lowest position before continuing.
8. Disconnect the connector from the sensor (stacker bin level encoder) (D).
9. Release the harness from the clamps.
10. Disconnect the connector (P8305) from the finisher controller card assembly (E).
C
B
Rear
Clamp
Clamp
D
P8305
E
