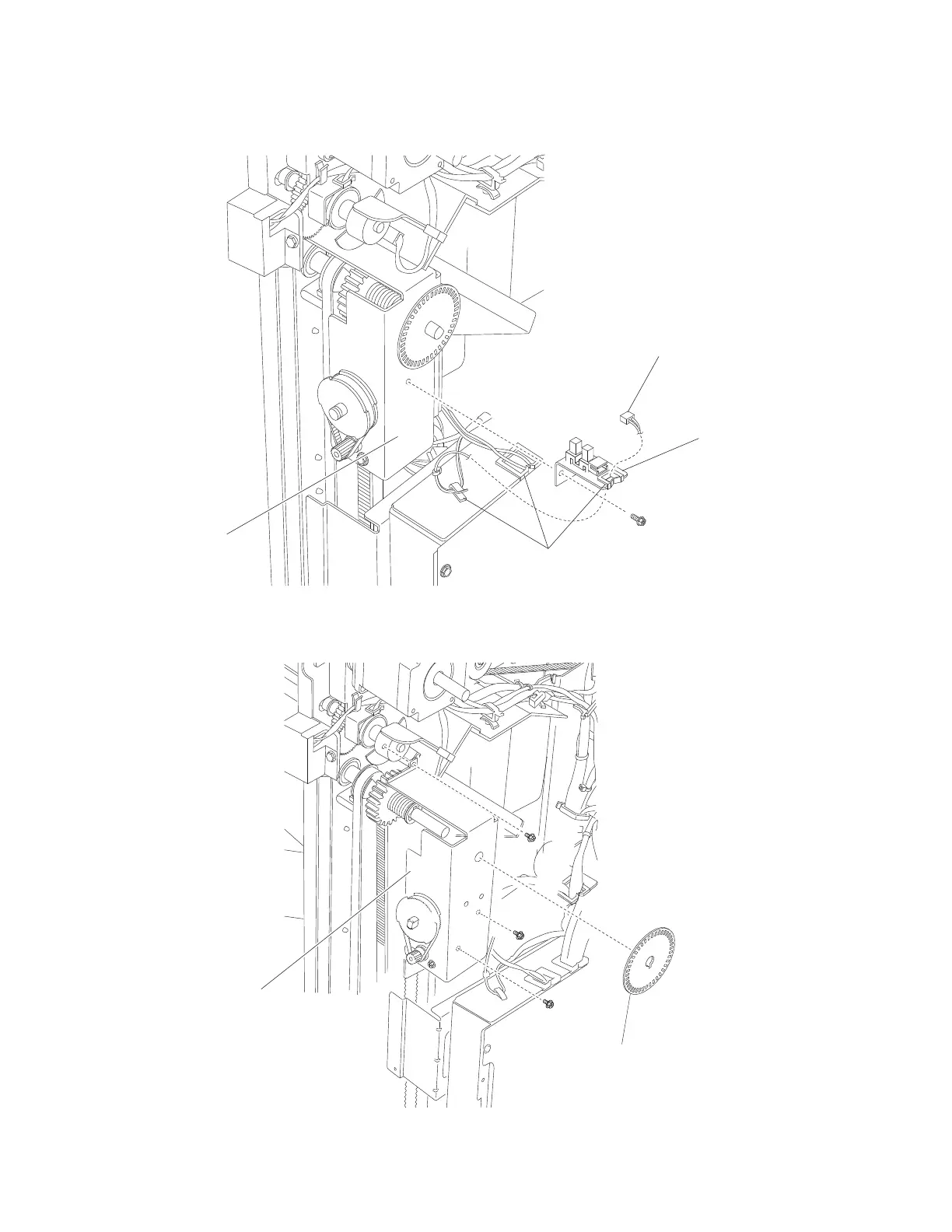

11. Remove the screw securing the bracket (F) to the stacker bin lift motor assembly (G).
12. Remove the bracket (F).
13. Release the hook securing the encoder (H) to the stacker bin lift motor assembly (G).
14. Remove the encoder.
15. Remove the three screws securing the stacker bin lift motor assembly (G) to the finisher.
16. Remove the stacker bin lift motor assembly (G).
