4-70 Finisher Service Manual
4024-XXX

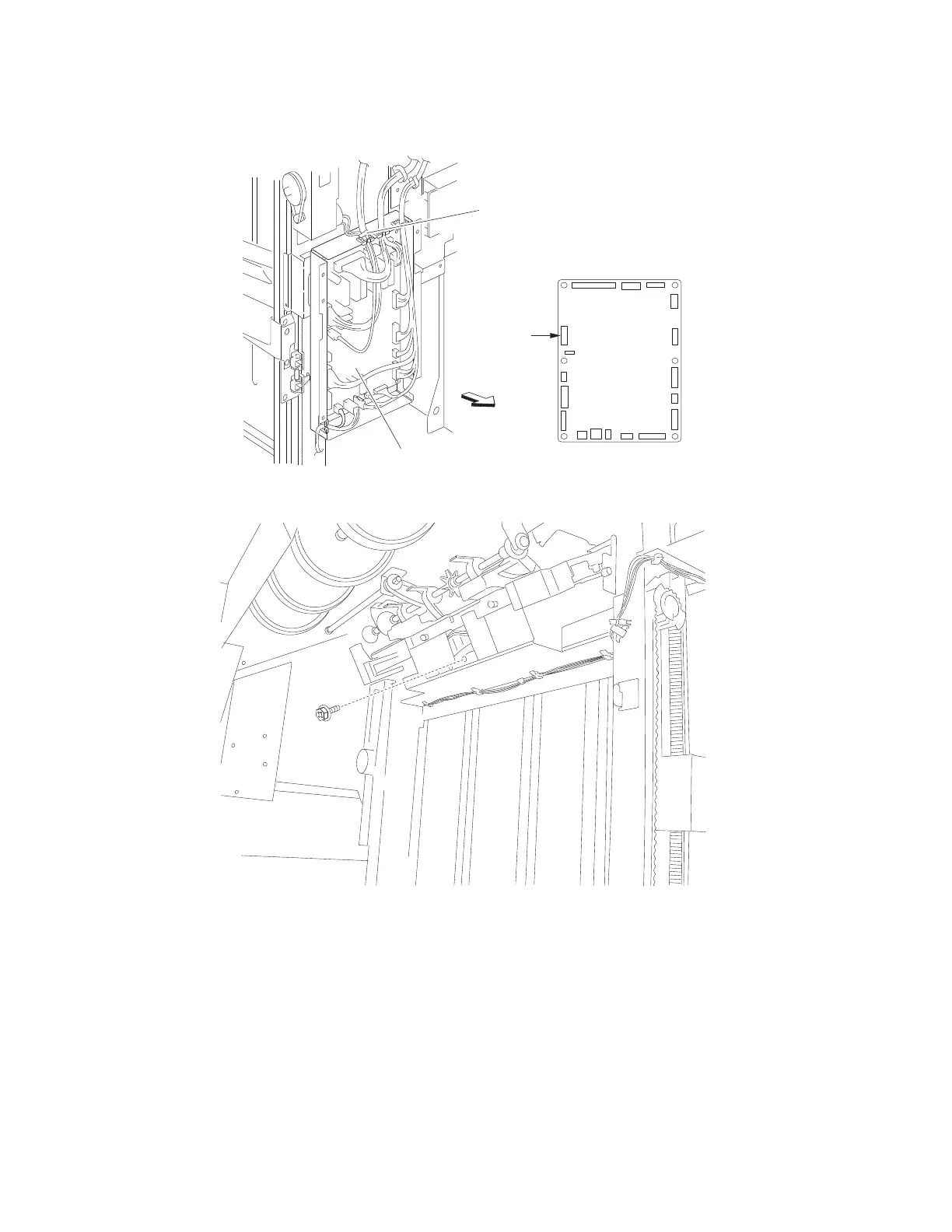

13. Disconnect the connector P8309 from the finisher controller card assembly (B).
14. Release the harness from the clamps.
15. Remove the screw securing the media compiler unit assembly (C) to the finisher. This screw is found inside
the finisher.
B
Rear
P8309
Clamp
Inside view
