Lexmark X925 Service Manual

3-44 Service Manual
7541-03x
Scanner
Duplex ADF

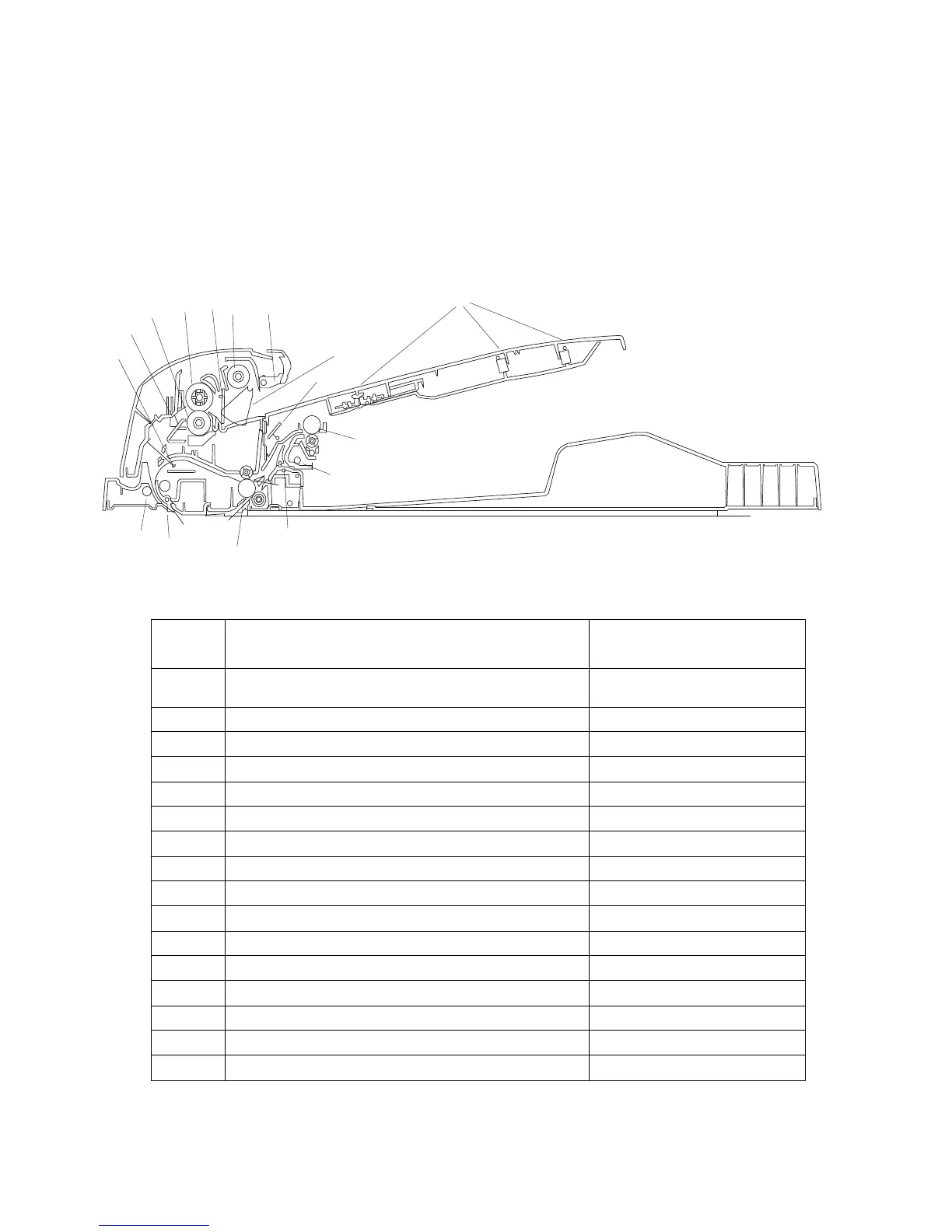

The following illustration shows the paperpath, rollers and sensors used in the X925 duplex ADF.
Callout Part name
Affected CRU / FRU part
catalog name
1 ADF paper length and width sensors - photo reflect /
multi-point contact
Tray paper size sensor
2 Paper pass sensor - photo reflect Duplex timing sensor
3 ADF paper present - photo interrupt ADF paper path sensor
4 ADF cover open ADF paper path sensor
5 Pick roll ADF pick roll (CRU)
6 Pick roll position sensor - Photo interrupt ADF paper path sensor
7 Feed roll ADF pick roll (CRU)
8 Separator roll ADF Separator roll (CRU)
9 Paper gap sensor - photo interrupt ADF paper path sensor
10 Paper in sensor - Photo reflect Scan sensor
11 Scan roller ADF main feed unit
12 Scan sensor - Photo interrupt Scan sensor
13 Takeaway roll ADF main feed unit
14 ADF paper exit sensor - Photo interrupt Duplex out sensor
15 Stack roller ADF main feed unit
16 Pass roller ADF main feed unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
