Repair information 4-129

7541-03x

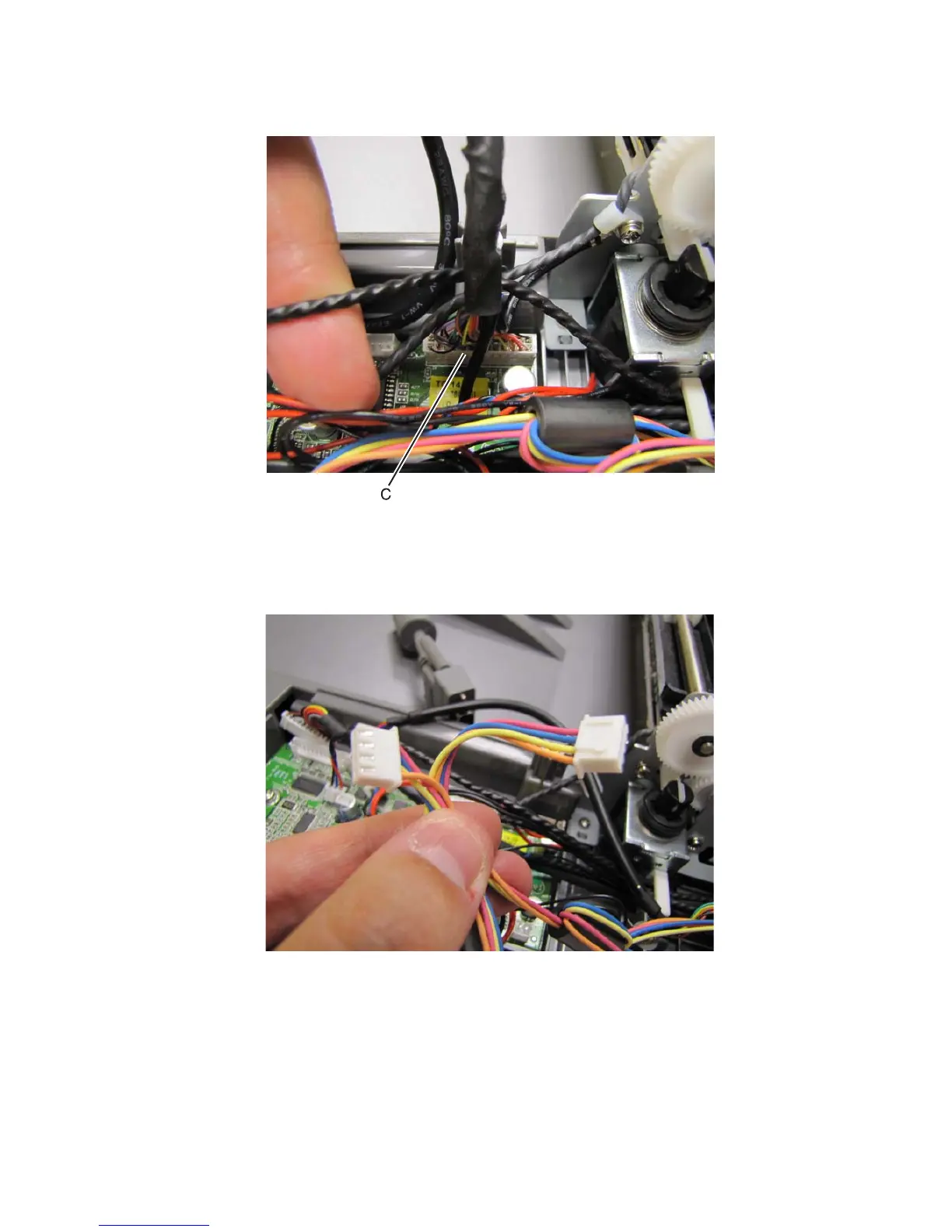

6. Disconnect the ADF cable (C) from the ADF relay board.

ADF motor frame

1. Remove the left ADF cover.

2. Disconnect the motor cables from the ADF relay card.
