Repair information 4-11

7541-03x

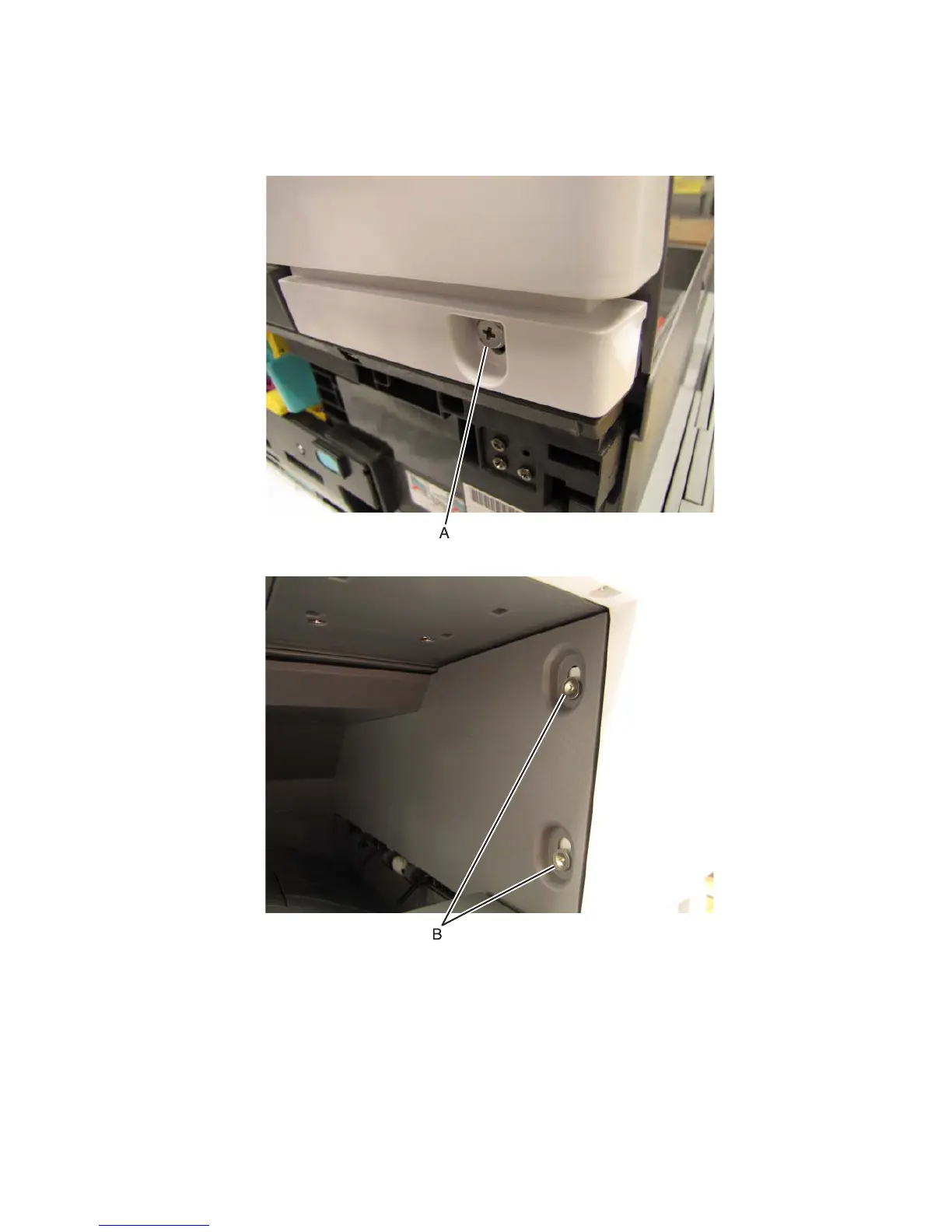

Front op panel cover

1. Remove the one screw (A) on the front right side.

2. Remove the two screws (B) on the on the inner left side of the cover.
