4-110 Service Manual

7541-03x

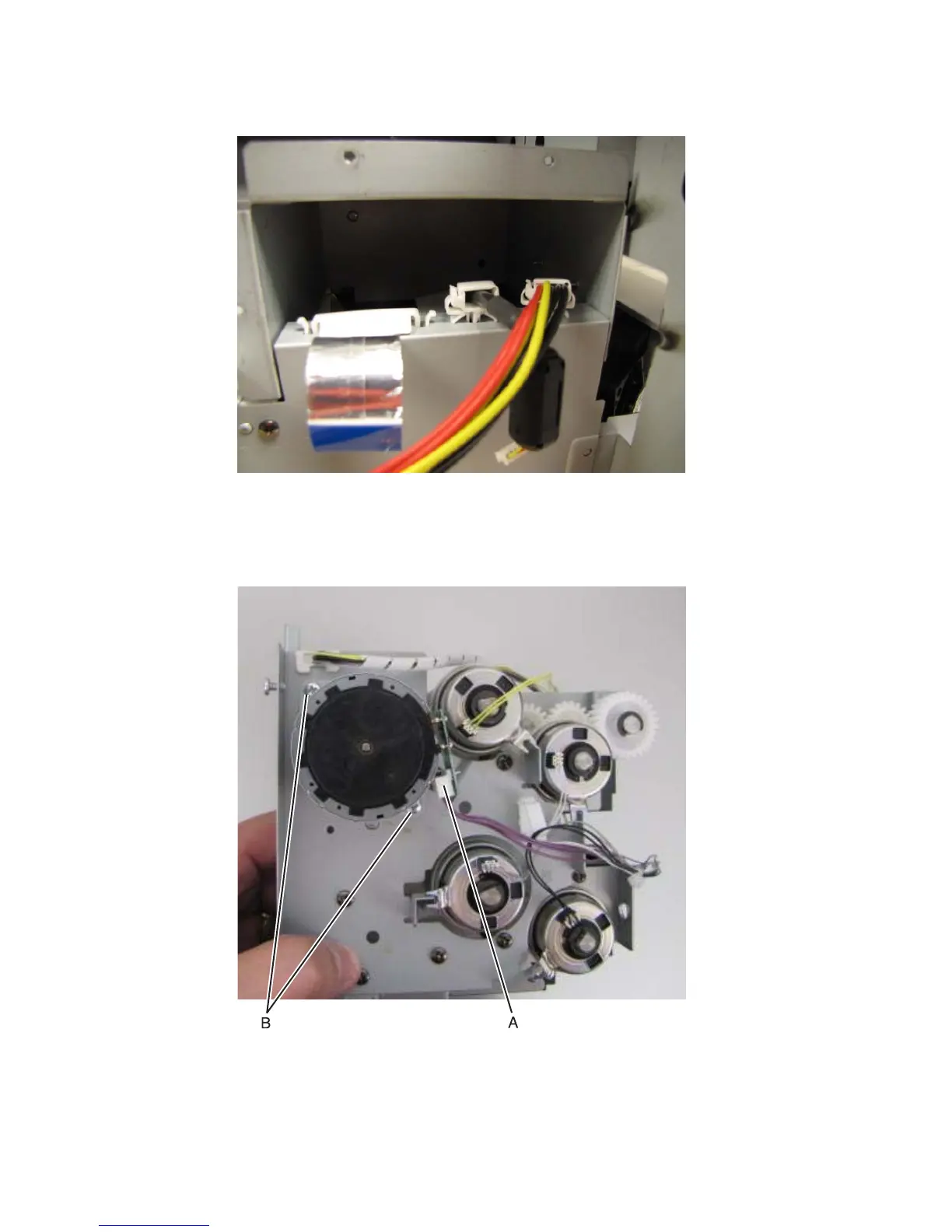

11. Remove the three cables out of the guides.

Paper feed motor removal

1. Remove the paper feed unit. See “Power supply fan removal” on page 4-55.

2. Disconnect the cable (A) from the paper feed motor.

3. Remove the two screws (B) securing the paper feed motor to the paper feed unit.
