Locations 5-1

7541-03x

5. Locations

Locations

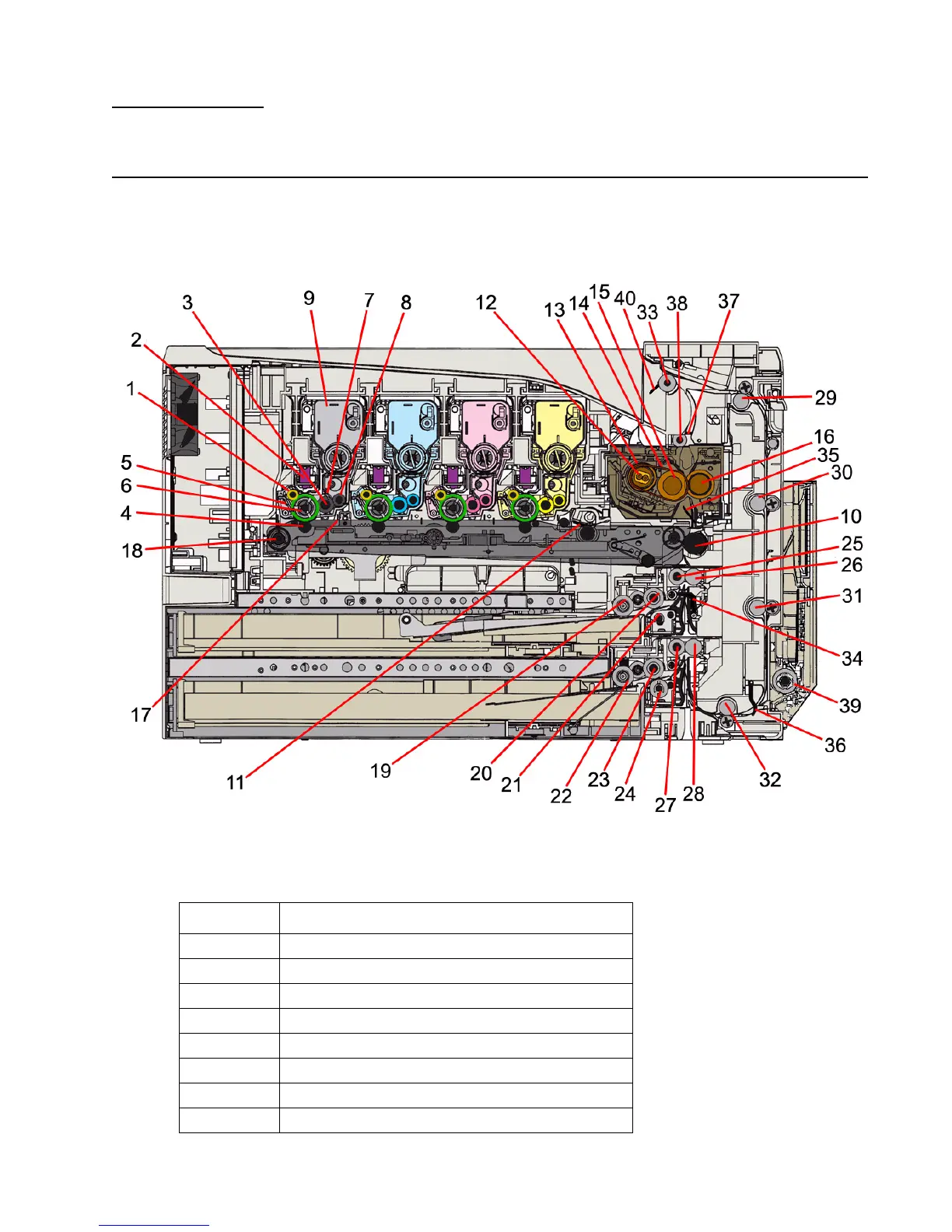

Print engine cross section

Callout no. Part name

1 Charge roll

2 LED head

3 Developer roll

4 Primary transfer roll

5 Drum cleaning blade

6 Photoconductor

7 Doctor blade

8 Supply roll
