Duplex unit component removals
Duplex clutch removal
1. Remove the duplex unit. See “Duplex removal” on page 4-63.

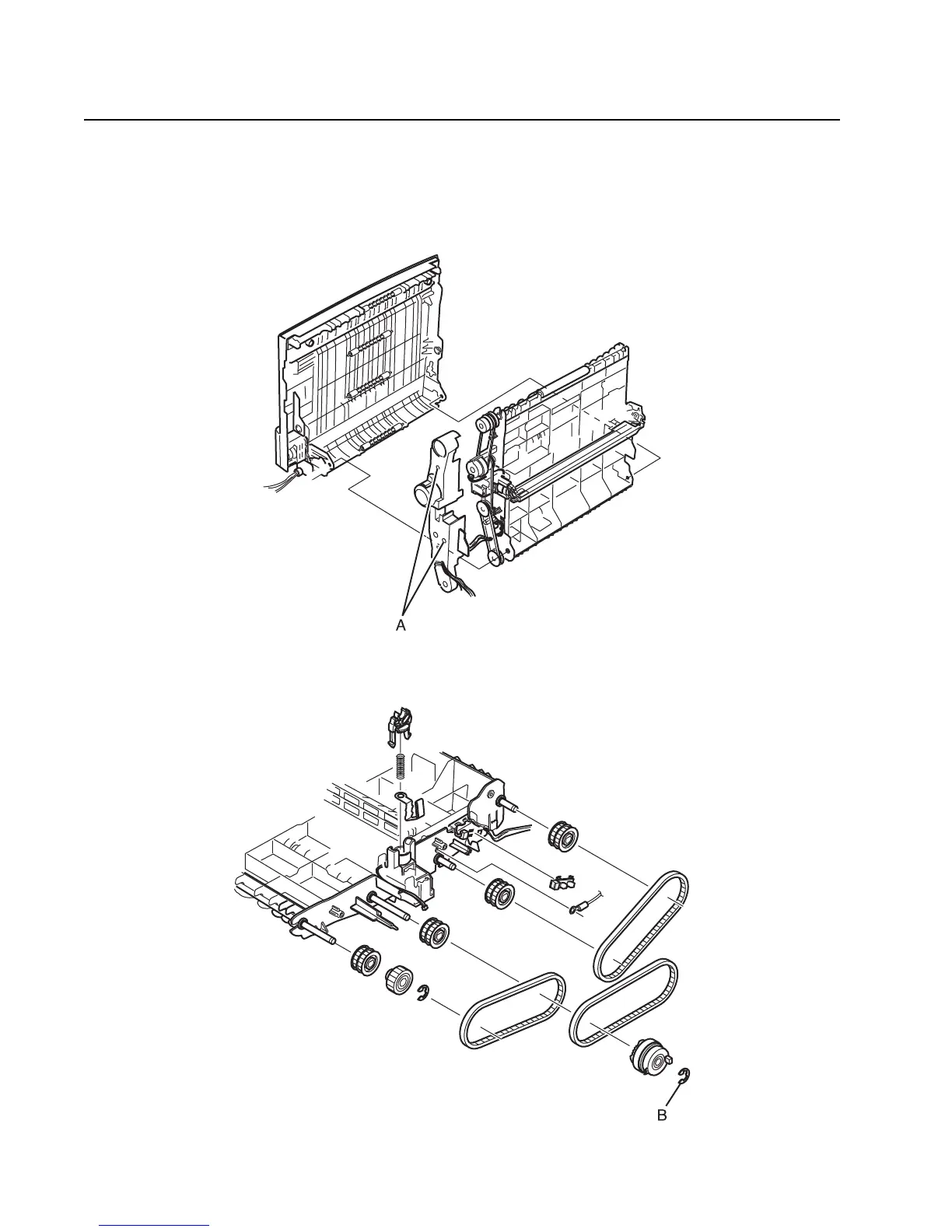

2. Remove the two screws (A) securing the duplex cover to the duplex unit.
3. Disconnect the duplex clutch harness from the duplex clutch.
4. Remove the e-clip (B) that fastens duplex clutch to the carrying shaft.
