Lexmark X925 - Torque Limiter Removal; Upper and Lower Registration Springs Removal

Repair information 4-181
7541-03x
Torque limiter removal
1. Remove the separator roll. See “Separator roll removal” on page 4-183.
2. Remove the torque limiter.
Upper and lower registration springs removal
1. Remove the paperfeed unit. See “Power supply fan removal” on page 4-55.
2. Remove the clutches on the paperfeed unit. See “Paperfeed unit clutch removal” on page 4-179.
3. Separate the two paperfeed units. See “Separating the MPF tray and main tray paperfeed units” on
page 4-177.

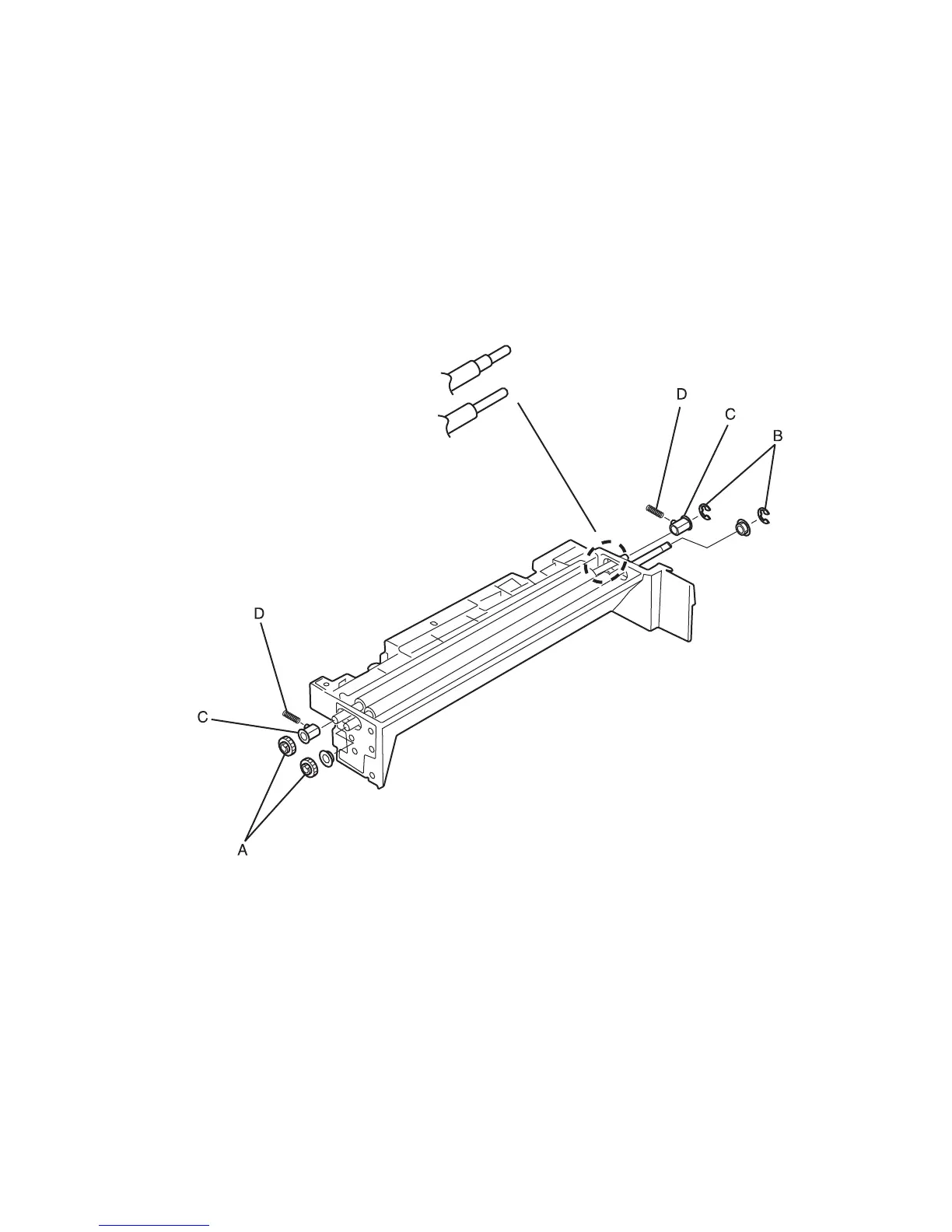

4. Remove the registration gears (A).
5. Remove the e-clips (B).
6. Remove the registration bushings (C).
7. Remove the registration springs (D).
