Repair information 4-157

7541-03x

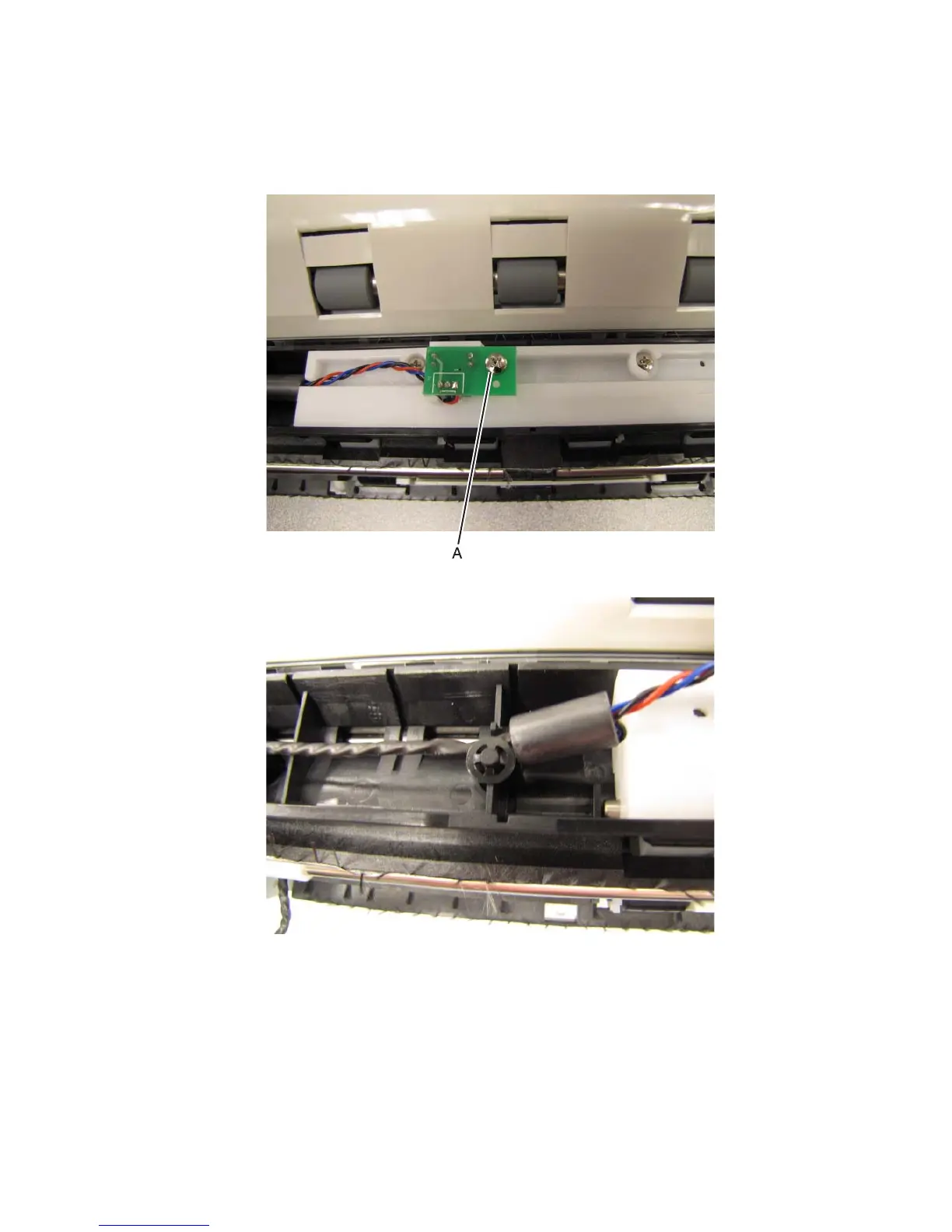

Duplex out (scan out) sensor

1. Remove the ADF main feed unit.

2. Remove the screw (a) securing the duplex out sensor to the ADF main feed unit.

3. Route the cable out of the main feed unit, removing the clips if needed.
