Lexmark X925 - Flatbed Upper Cover

Repair information 4-161
7541-03x
Flatbed upper cover
1. Remove the flatbed assembly. See “Flatbed assembly removal” on page 4-116.
2. Remove the flatbed front cover. See “Flatbed front cover” on page 4-117.

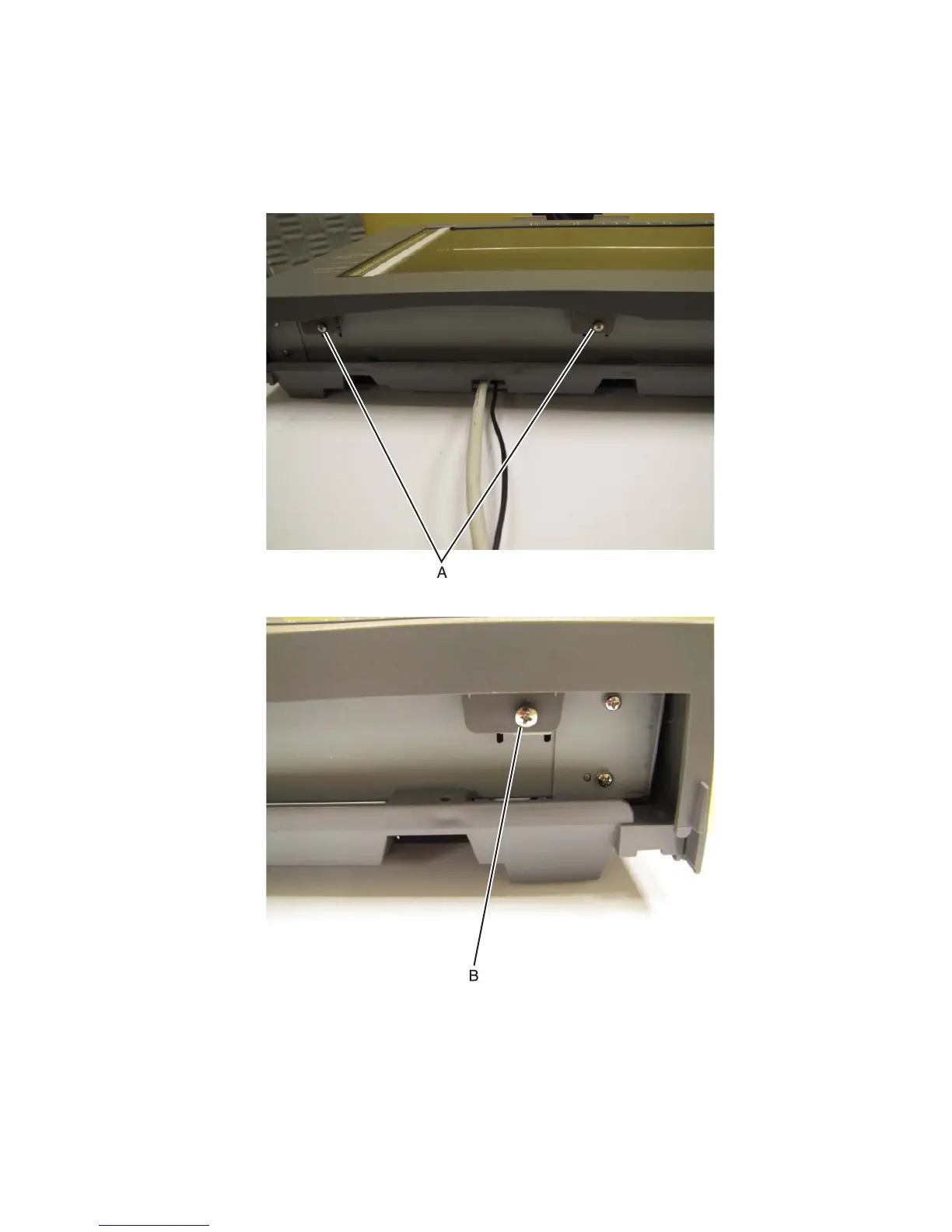

3. Remove the two screws (A) on the front of the flatbed unit.
4. Remove the screw (B) on the front of the cover.
