Repair information 4-175

7541-03x

MPF tray assembly removal

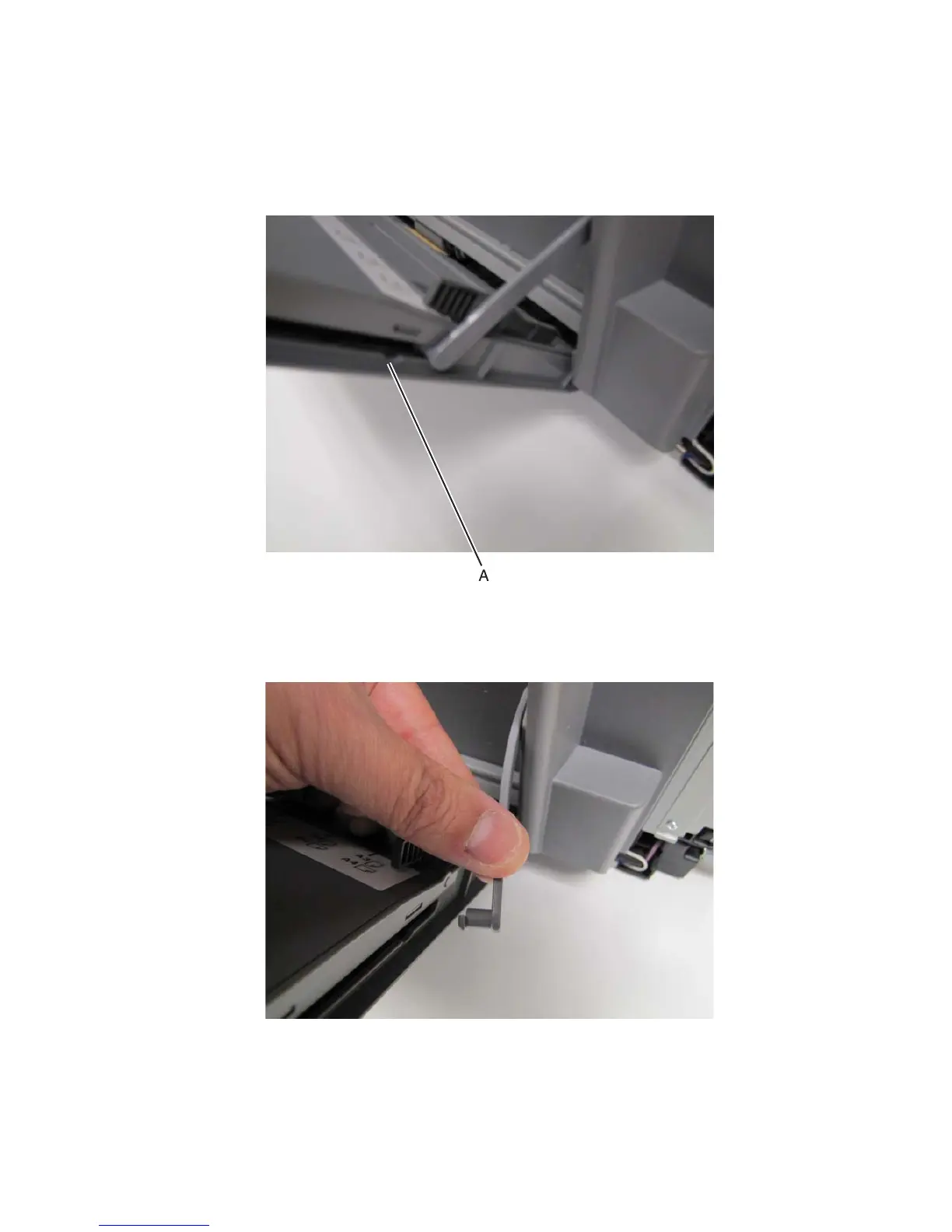

1. Open the MPF tray.

2. Slide the MPF arm up to the opening on the tray (A).

3. Pull the arm out of the tray.

4. Repeat steps 1 and 2 for the other arm.

5. Remove the MPF roller cover.
