Lexmark X925 - Option Paper Feed Removals; Paper Feed Roll Removal; Pick Roll Removal

4-196 Service Manual
7541-03x
Option paper feed removals

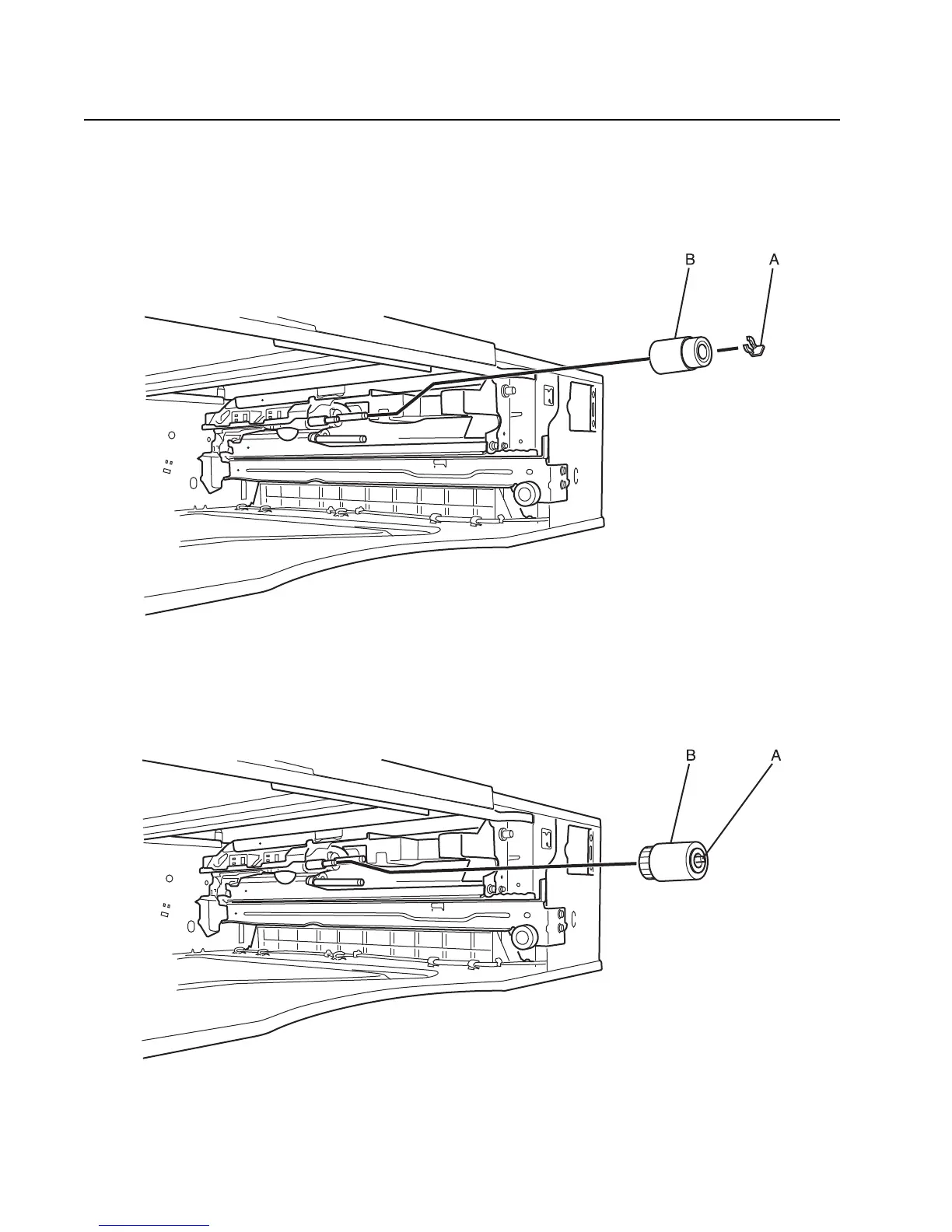

Paper feed roll removal
1. Remove the paper tray from the option paper feed unit.
2. Remove the clip (A) securing the paper feed roll to the shaft.
3. Slide the paper feed roll (B) off the shaft to remove it.
Pick roll removal
1. Remove the paper tray from the option paper feed unit.
2. Pull back the tab (A) on the pick roll.
3. Slide the pick roll (B) off of the shaft to remove it.
