Repair information 4-195

7541-03x

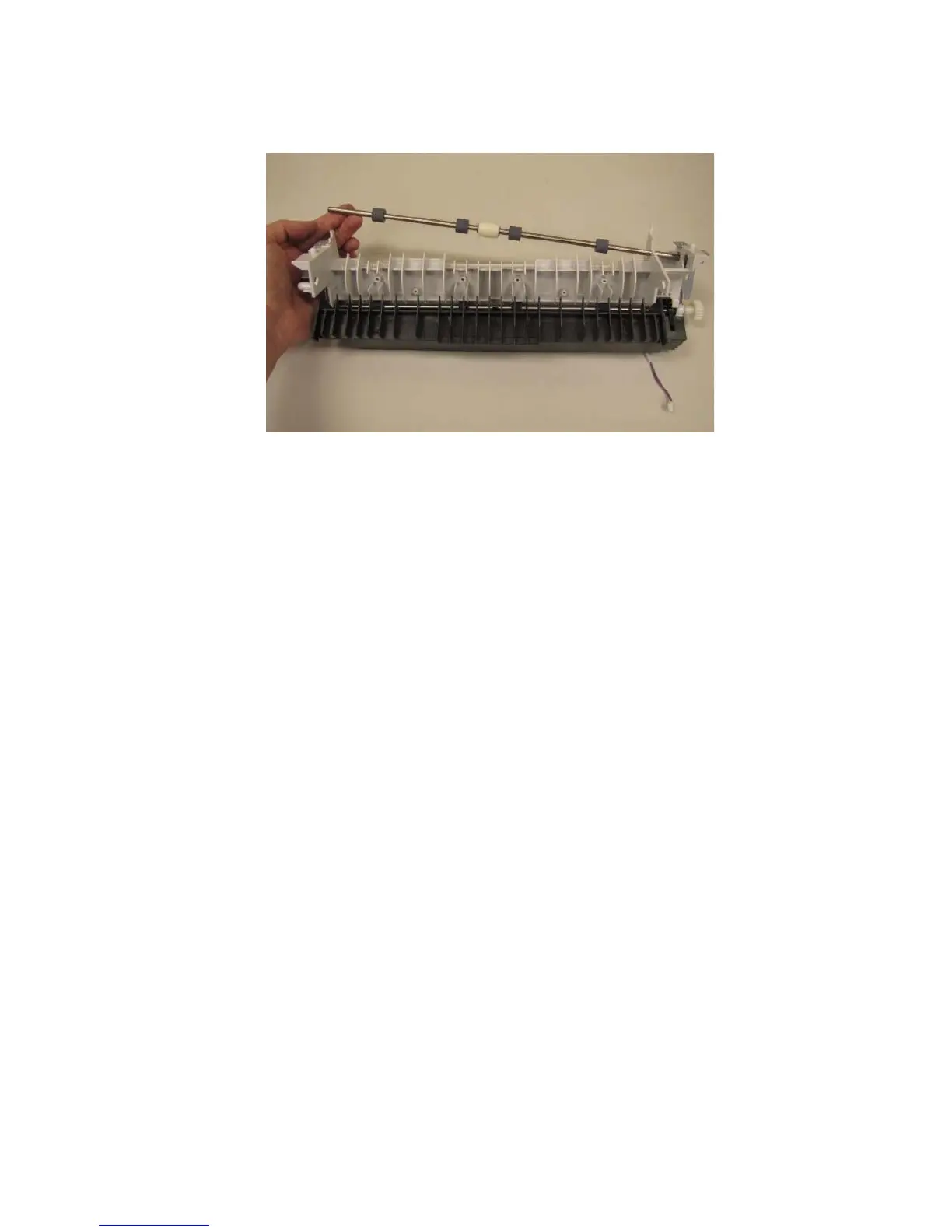

13. Move the paper exit guide roll to the left, lift it out of the frame and pull it to the lift, releasing it from the

paper exit unit.
