Lexmark X925 - Op Panel Paper Exit Guide Removal

4-32 Service Manual
7541-03x
Op panel paper exit guide removal
1. Remove the paper output bin. See “Output bin (print engine top) cover” on page 4-17.

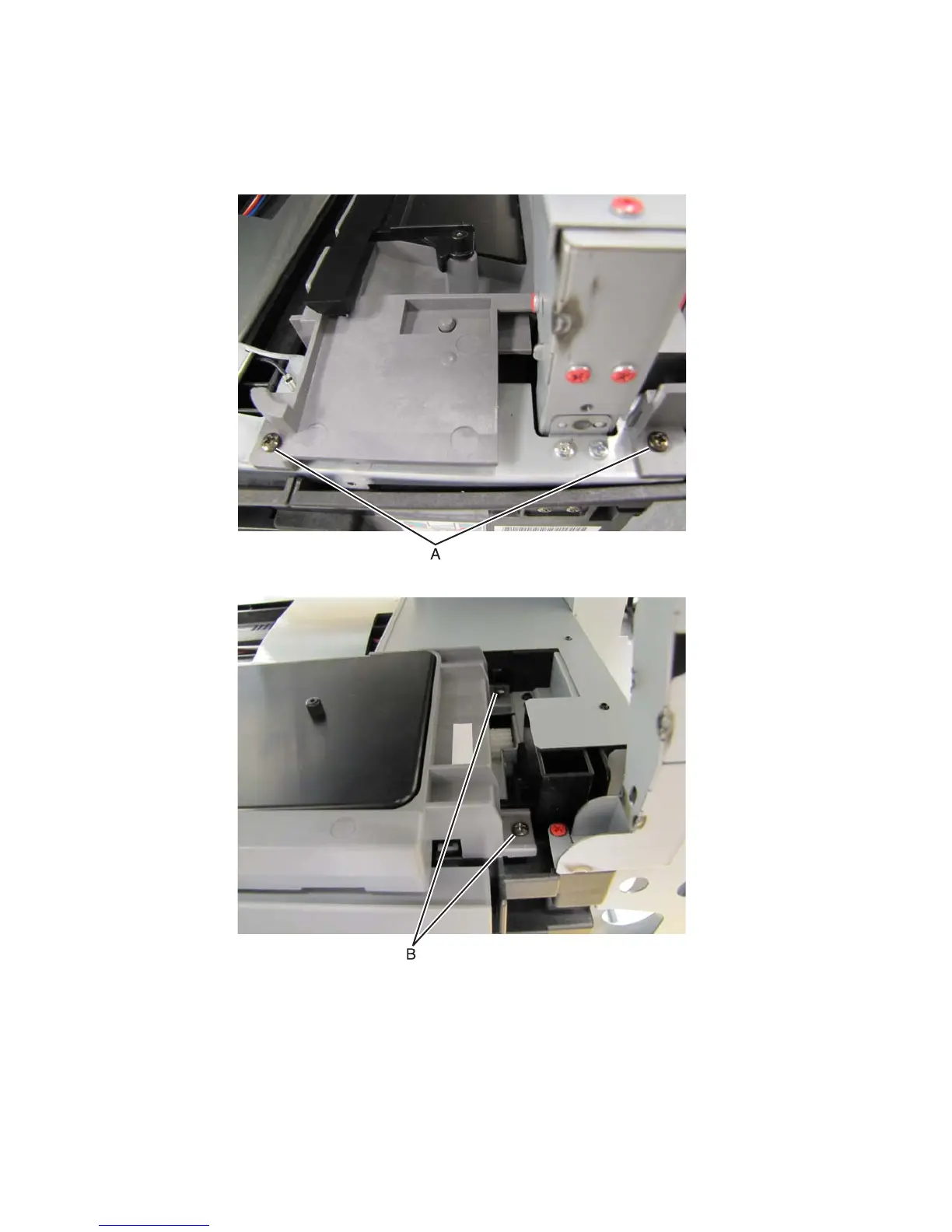

2. Remove the two screws (A) on the front.
3. Remove the two screws (B) in the rear.
