Lexmark X925 - Paper Size Switch Removal

To Next Page

To Previous Page

Repair information 4-105

7541-03x

Paper size switch removal

1. Remove the HVPS. See “HVPS removal” on page 4-111.

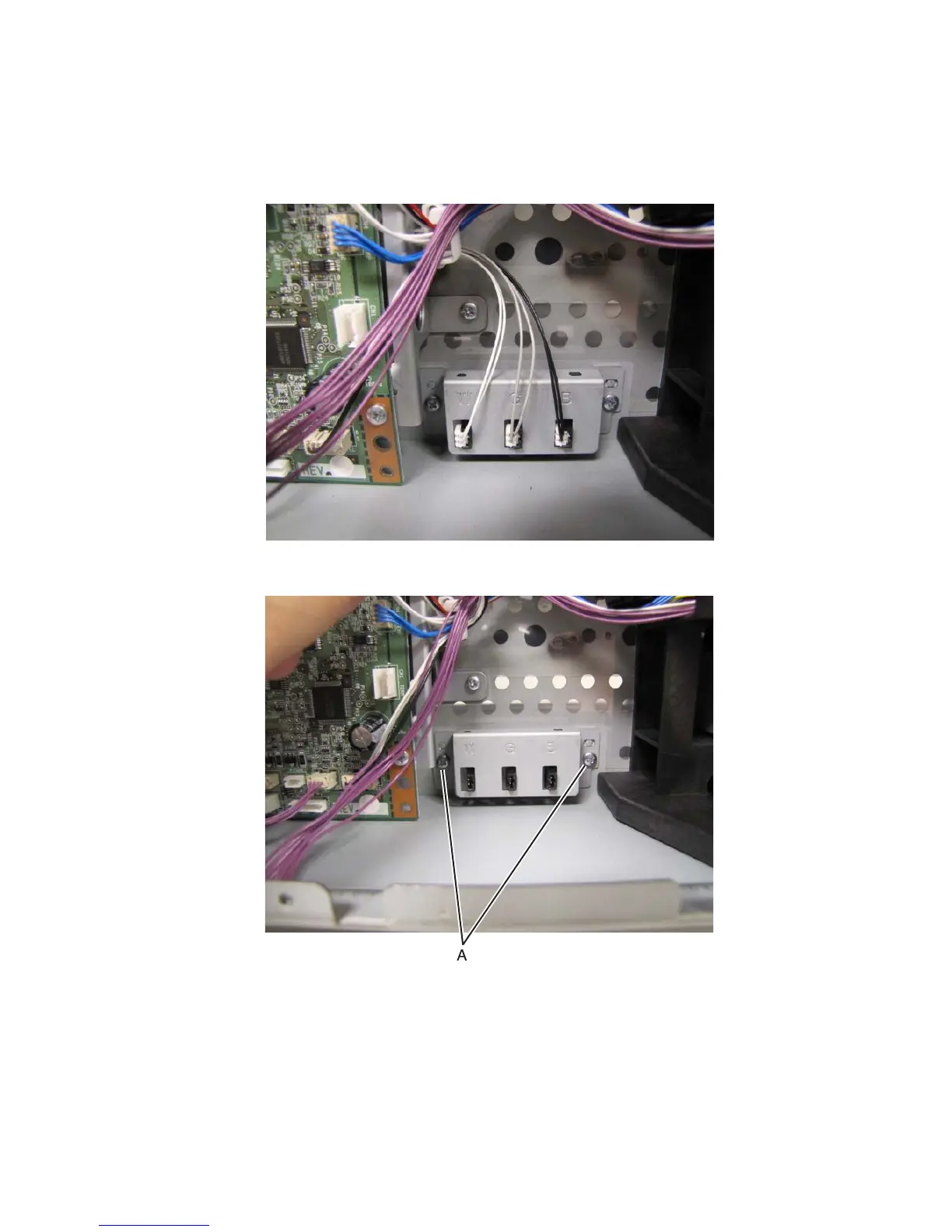

2. Disconnect the three cables.

3. Remove the two screws (A) securing the sensor mount to the printer frame.
