Lexmark X925 - Separator Roll Removal

Repair information 4-183
7541-03x
Separator roll removal

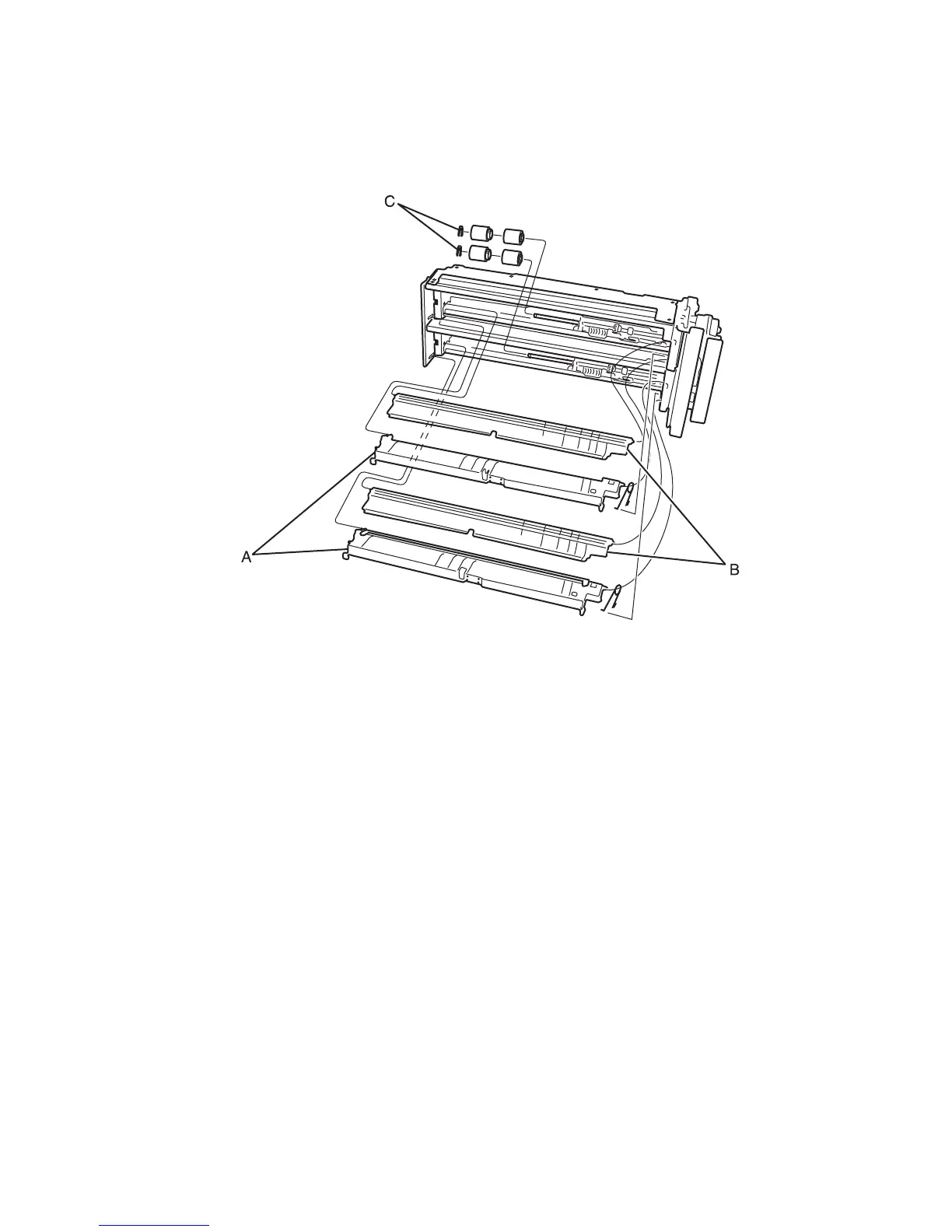

1. Lower the duplex unit to the down position.
2. Remove the outer cassette guide (A.
3. Remove the inner cassette guide (B).
4. Remove the plastic e-clip (C) that secures the separator roll to the shaft.
5. Remove the separator roll.
