Repair information 4-185

7541-03x

MPF roll removal

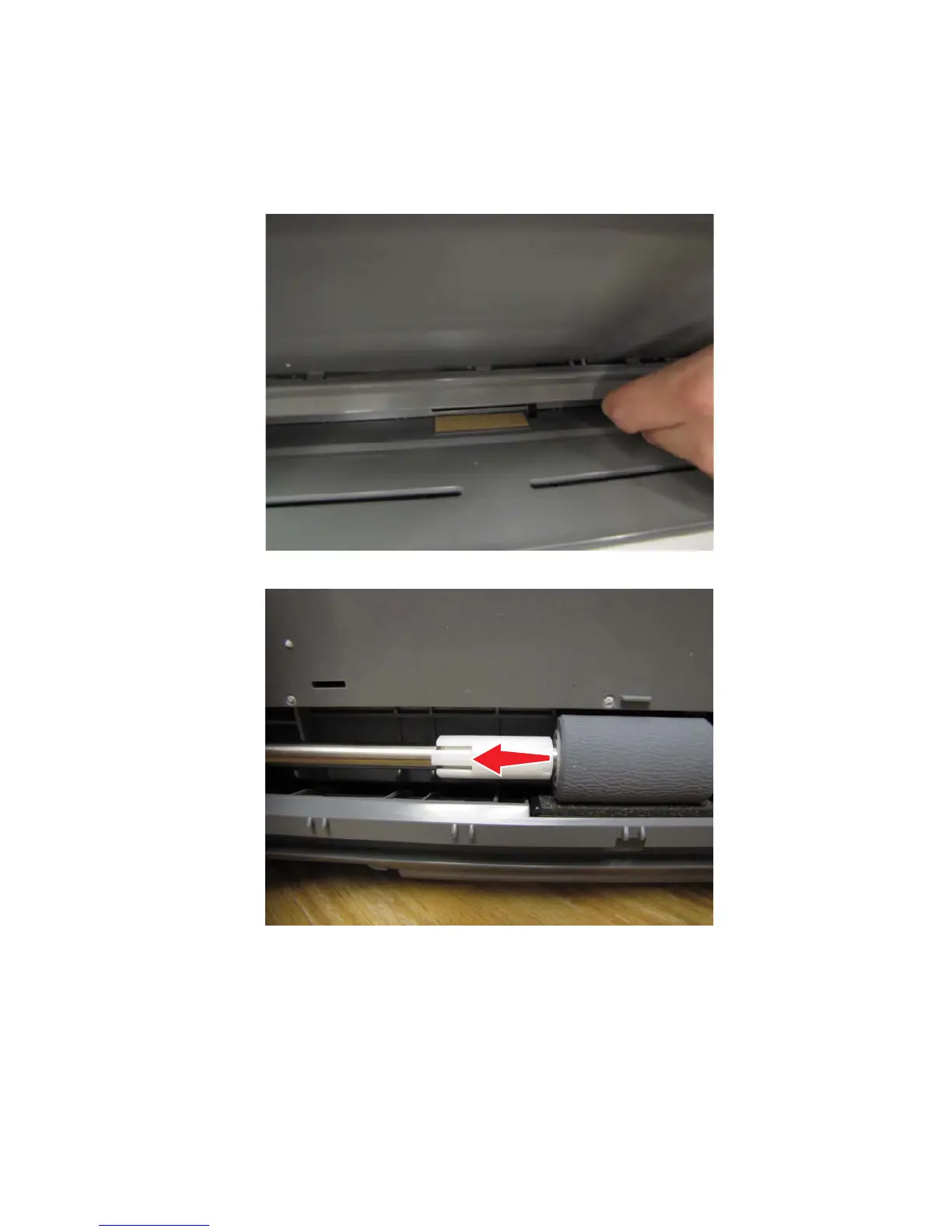

1. Remove the MPF arms (A) from the MPF tray and right cover.

2. Lower the MPF tray.

3. Remove the MPF roller cover.

4. Slide the MPF coupling to the left.
