Repair information 4-117

7541-03x

Flatbed front cover

1. Remove the flatbed assembly from the flatbed platform.

2. Turn the flatbed over on a non marring surface.

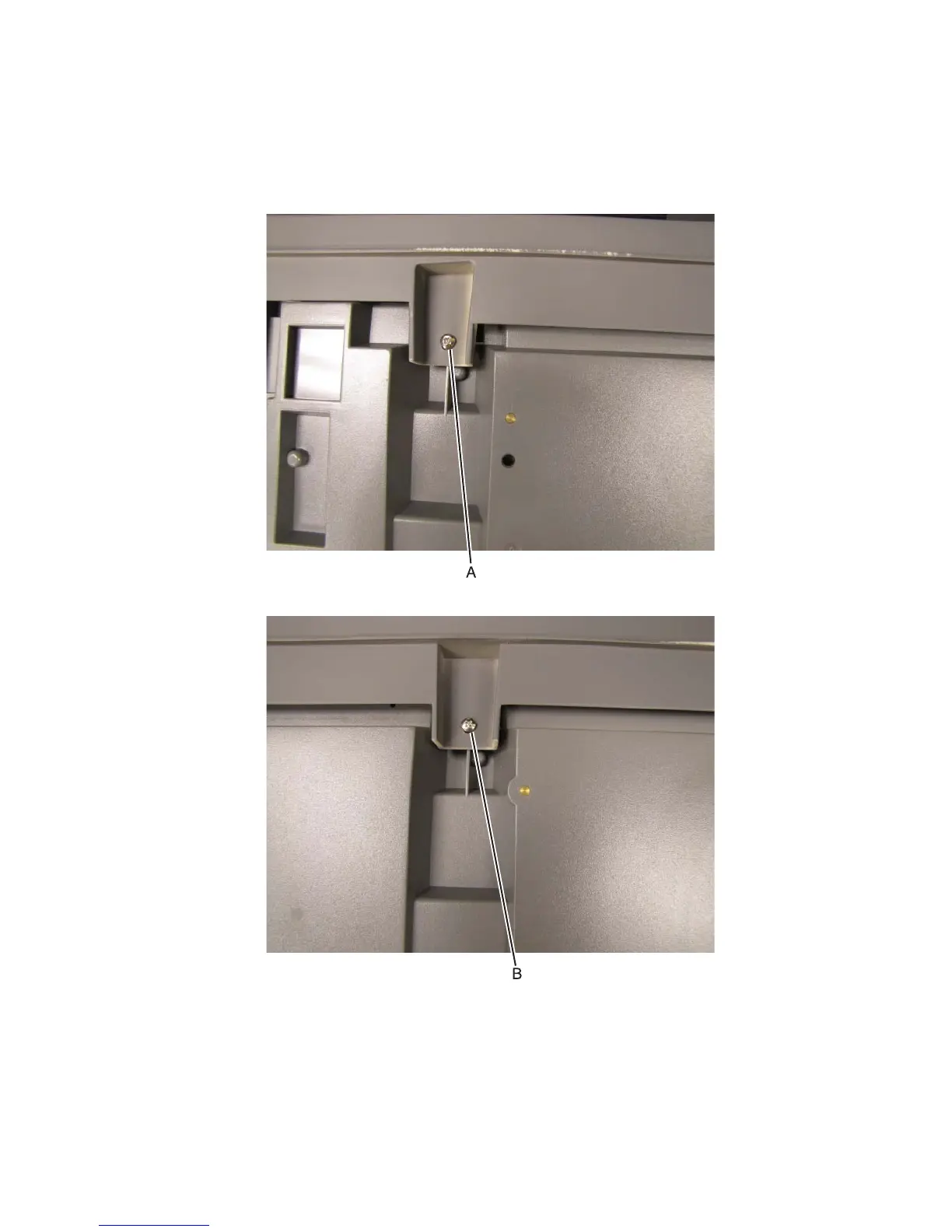

3. Remove the screw (A).

4. Remove the screw (B).
