4-114 Service Manual

7541-03x

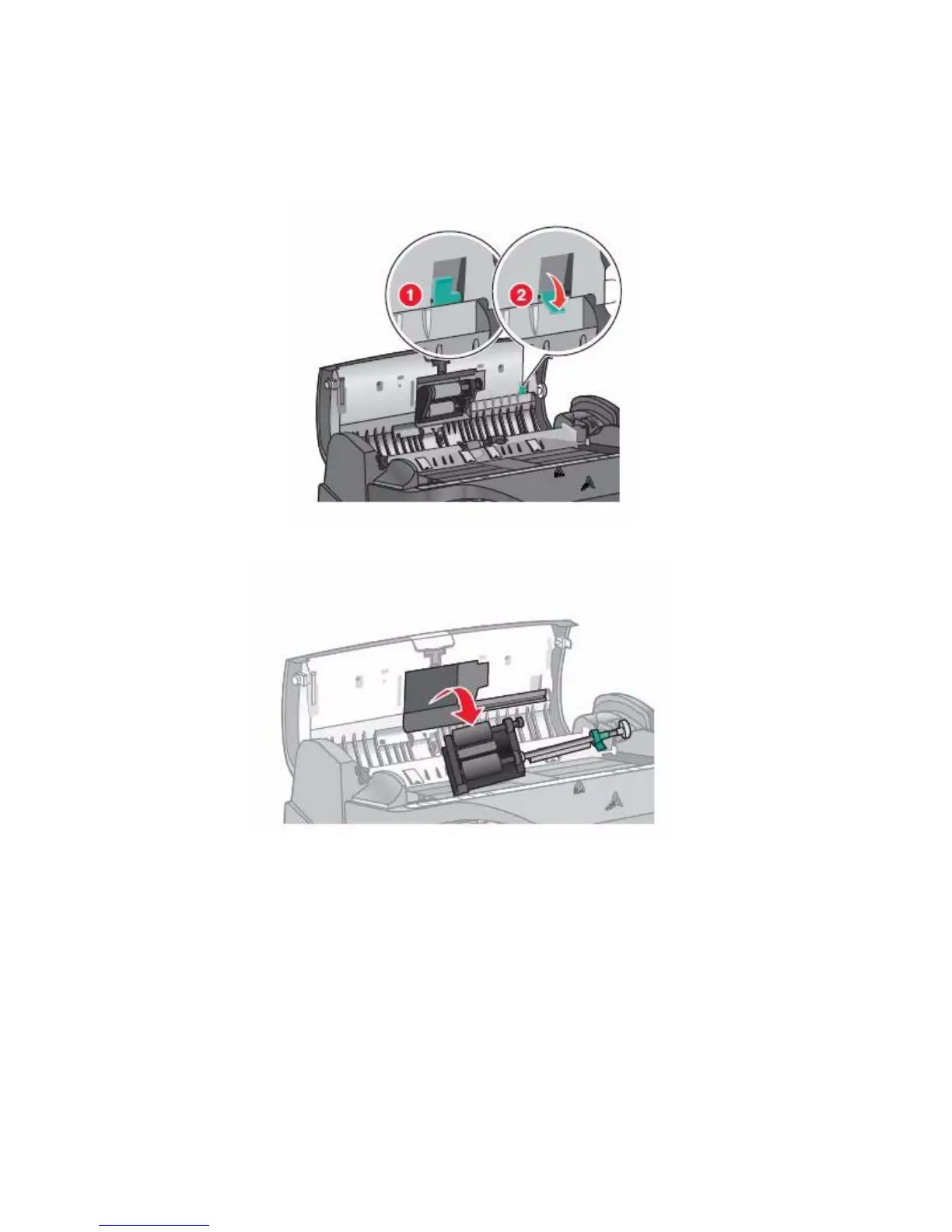

ADF pick roll removal

1. Open the ADF top cover.

2. Pull the tab(1) down (2).

3. Remove the ADF pick roll.
