Lexmark X925 - ADF Relay Card Connectors

To Next Page

To Previous Page

Locations 5-31

7541-03x

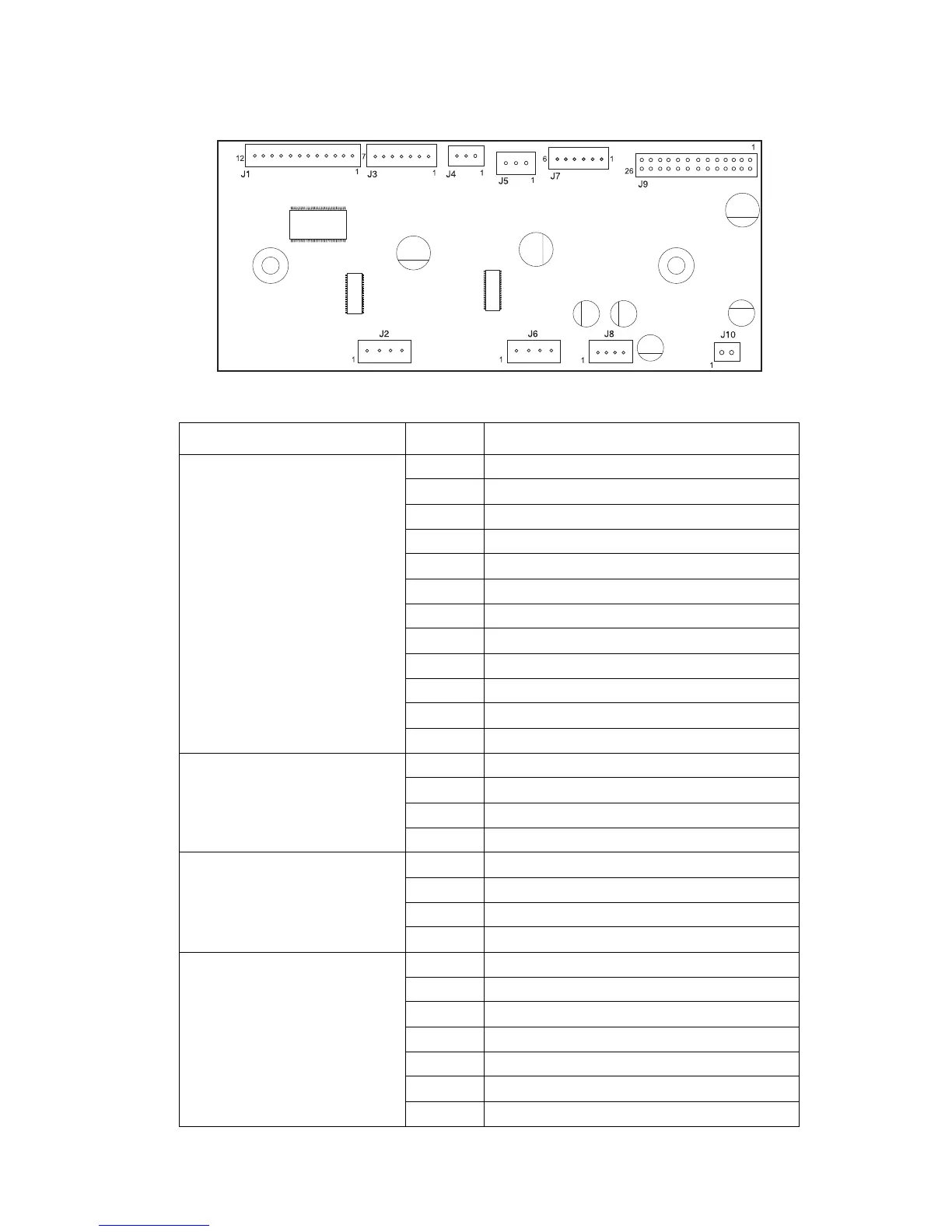

ADF relay card connectors

ADF relay card

Connector Pin no. Signal

J1 - ADF cover sensors 1 +5V

2 COVER OPEN

3 GND

4 +5V

5 PICKUP ROLLER

6 GND

7 +5V

8 GAP

9 GND

10 +5V

11 PAPER DET

12 GND

J2 - ADF scan motor 1 OUT2B 1

2 OUT1A 1

3 OUT2A 1

4 OUT1B 1

J6 - ADF pick motor 1 OUT2B 2

2 OUT1A 2

3 OUT2A 2

4 OUT1B 2

J3 - ADF paper width and length

sensors

1 B5SEN

2 A4SEN

3 B4SEN

4 5V

5 GND

6 A3SEN

7 L1SEN
