Repair information 4-101

7541-03x

Temperature and humidity sensor removal

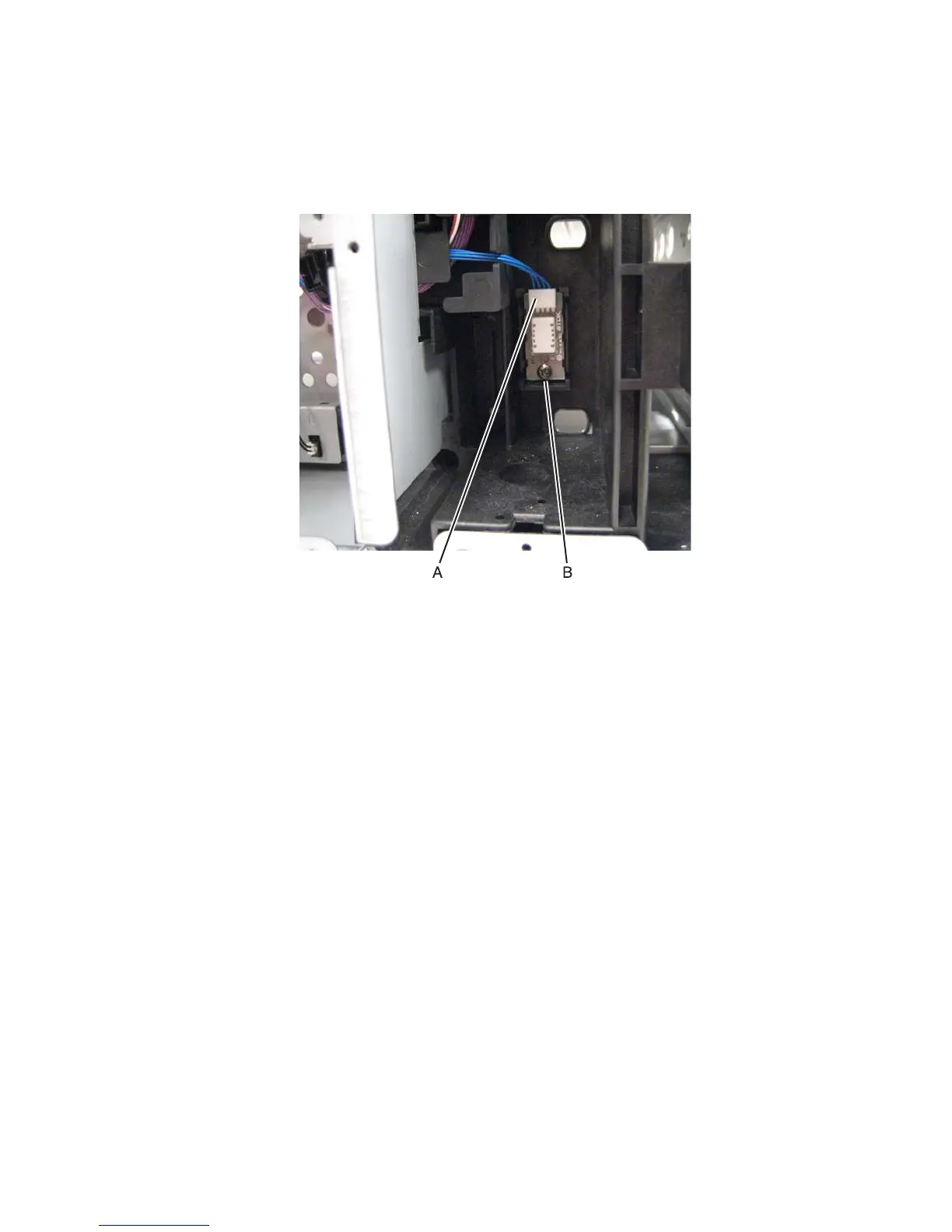

1. Remove the rear cover. The sensor will be located to the right side of the right rear scanner support.

2. Disconnect the sensor cable (A) from the sensor.

3. Remove the screw (B) securing the sensor to the printer frame.
