4-148 Service Manual

7541-03x

Scan sensor actuator

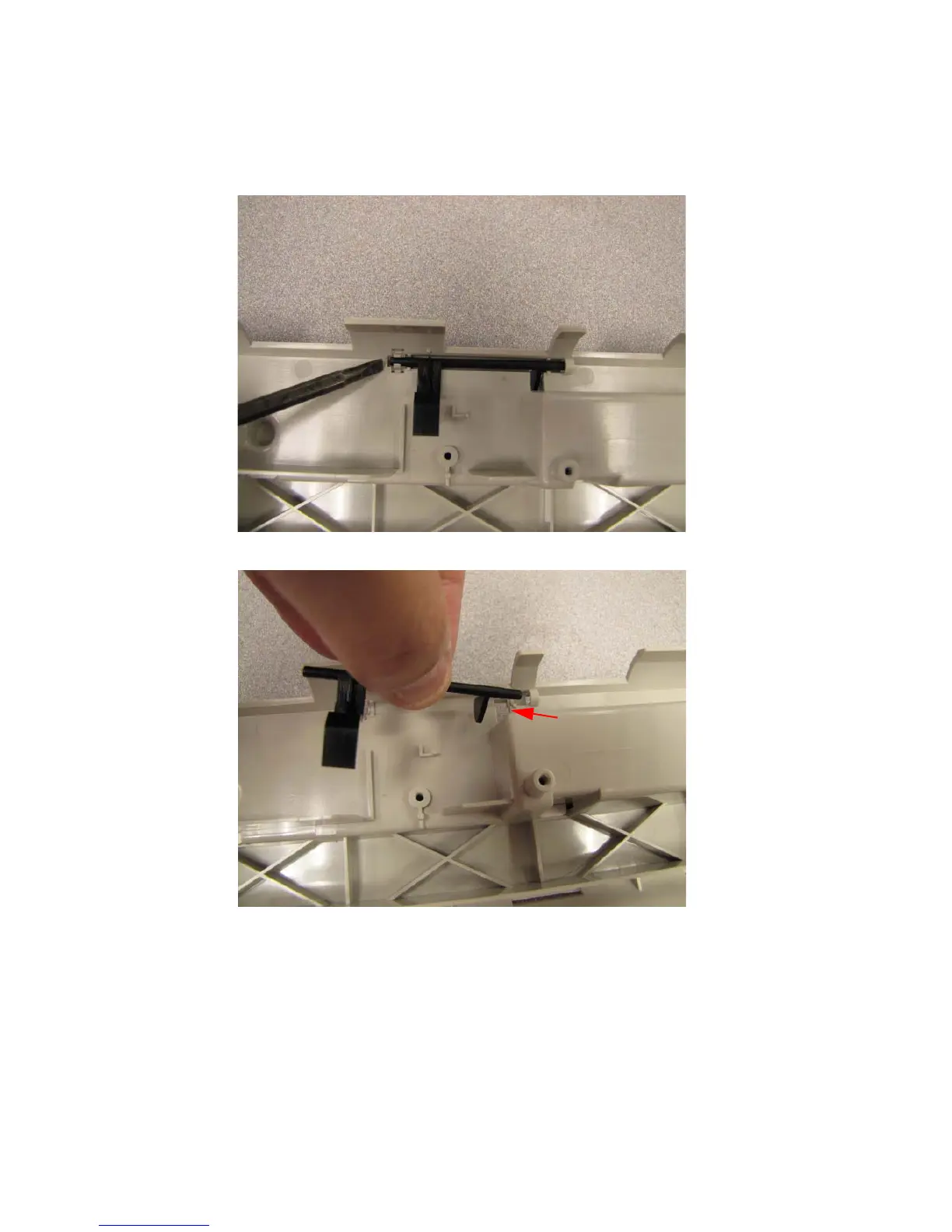

1. Remove the scan sensor.

2. Use a flatbed screwdriver to free the actuator from the scan sensor cover.

3. Remove the actuator.
