Lexmark X925 - Back Cave Cover

4-18 Service Manual
7541-03x

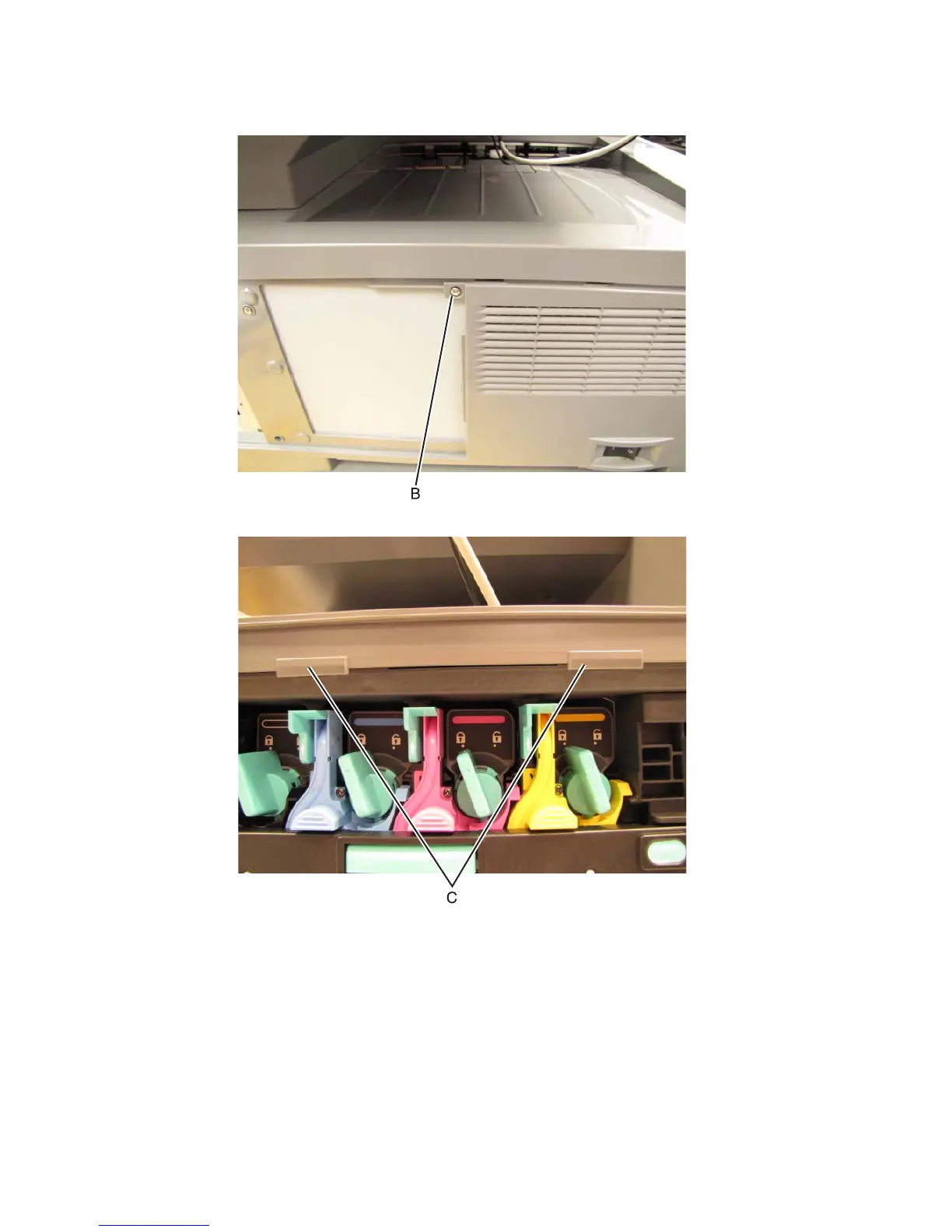

3. Remove the one screw (B) on the left side above the scanner power supply door.
4. Use a flatbed screwdriver to release the tabs (C) on the top cover from the printer frame.
5. Lift and remove the top cover.
Back cave cover
1. Remove the inner right cover.
2. Remove the top cover.
