Lexmark X925 - Top EMI Sheild Removal

Repair information 4-39
7541-03x

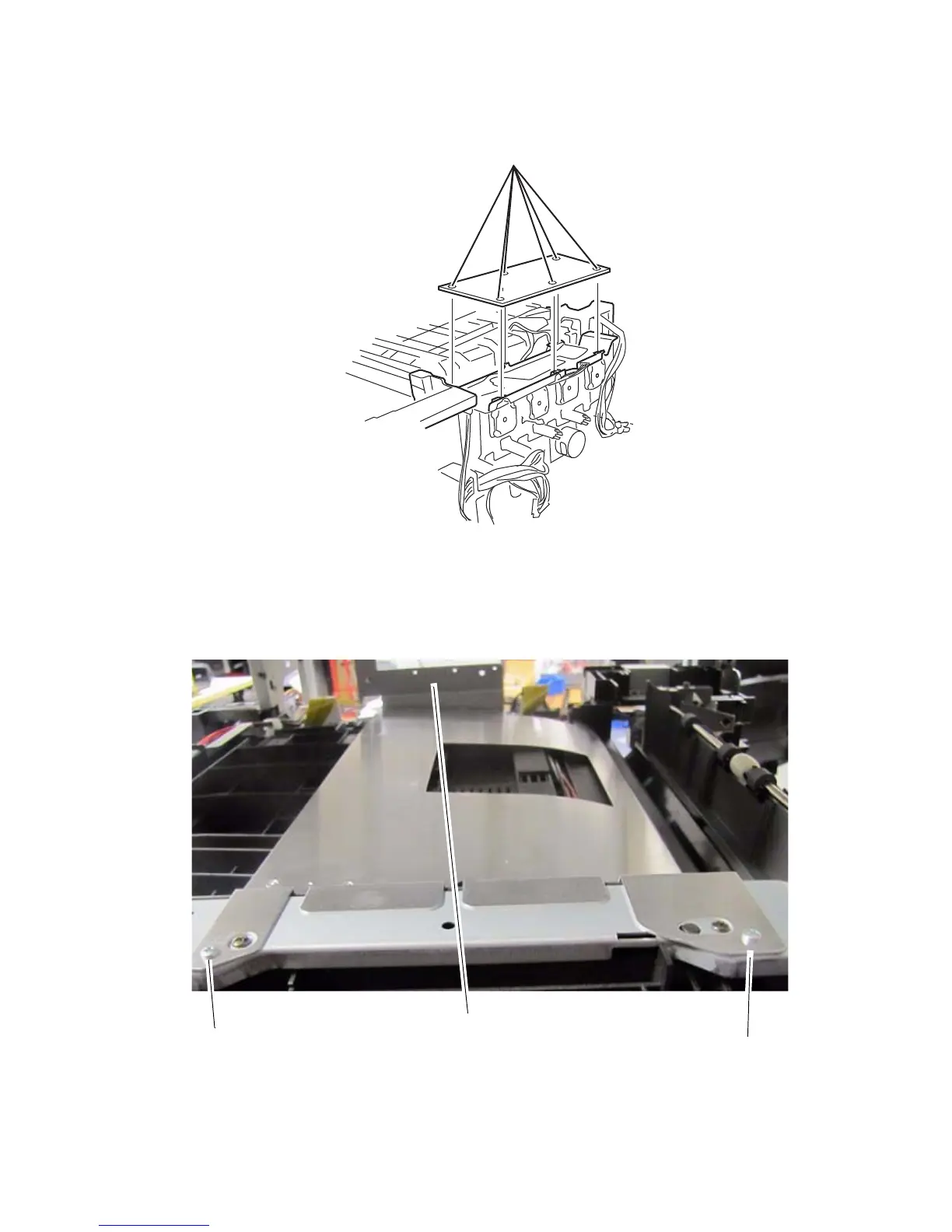

8. Remove the six screws (C) fastening the printhead controller board to the frame.
Top EMI sheild removal
1. Remove the output bin cover. See “Output bin (print engine top) cover” on page 4-17.
2. Remove the two front screws (A) that secure the top EMI shield to the printer frame.
3. Remove the screws (B) that secure the top sheild to the rear EMI sheild.
C
A
A
B
