Repair information 4-177
7541-03x
Paperfeed unit component removals
Note: The paperfeed, separator, and pick rolls are part of the 300,000 page maintenance kit. See the
“Paperfeed maintenance kit removals” on page 4-182 for removal instructions.
Separating the MPF tray and main tray paperfeed units
1. Remove the paperfeed unit from the printer. See “Power supply fan removal” on page 4-55.
2. Remove the clutches on the paperfeed unit. See “Paperfeed unit clutch removal” on page 4-179.

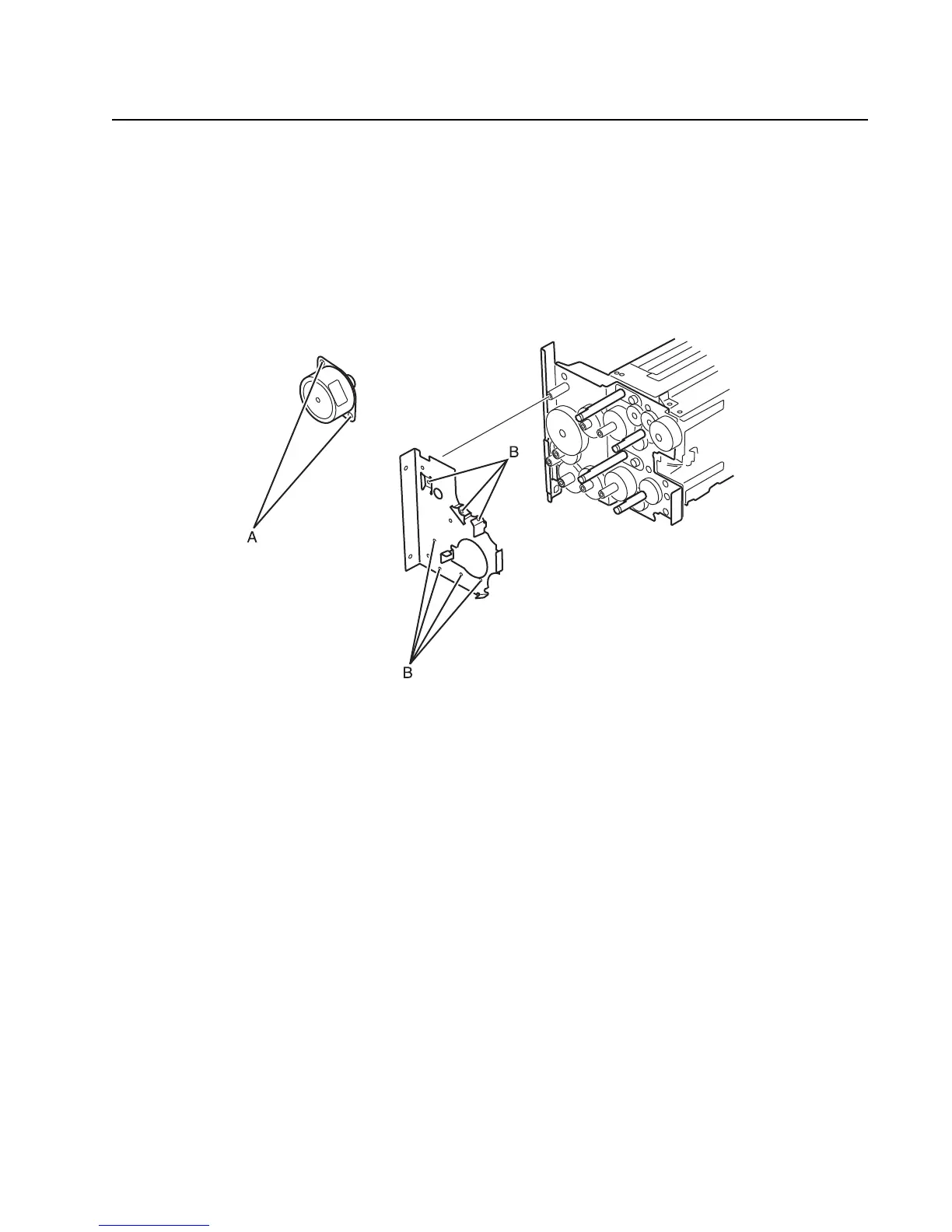

3. Remove the two screws (A) securing the paperfeed motor to the paperfeed motor frame.
4. Remove the seven screws (B) securing the paperfeed motor frame to the paper feed unit.
5. Remove the paper feed motor frame.
