Repair information 4-15

7541-03x

Op panel bottom cover

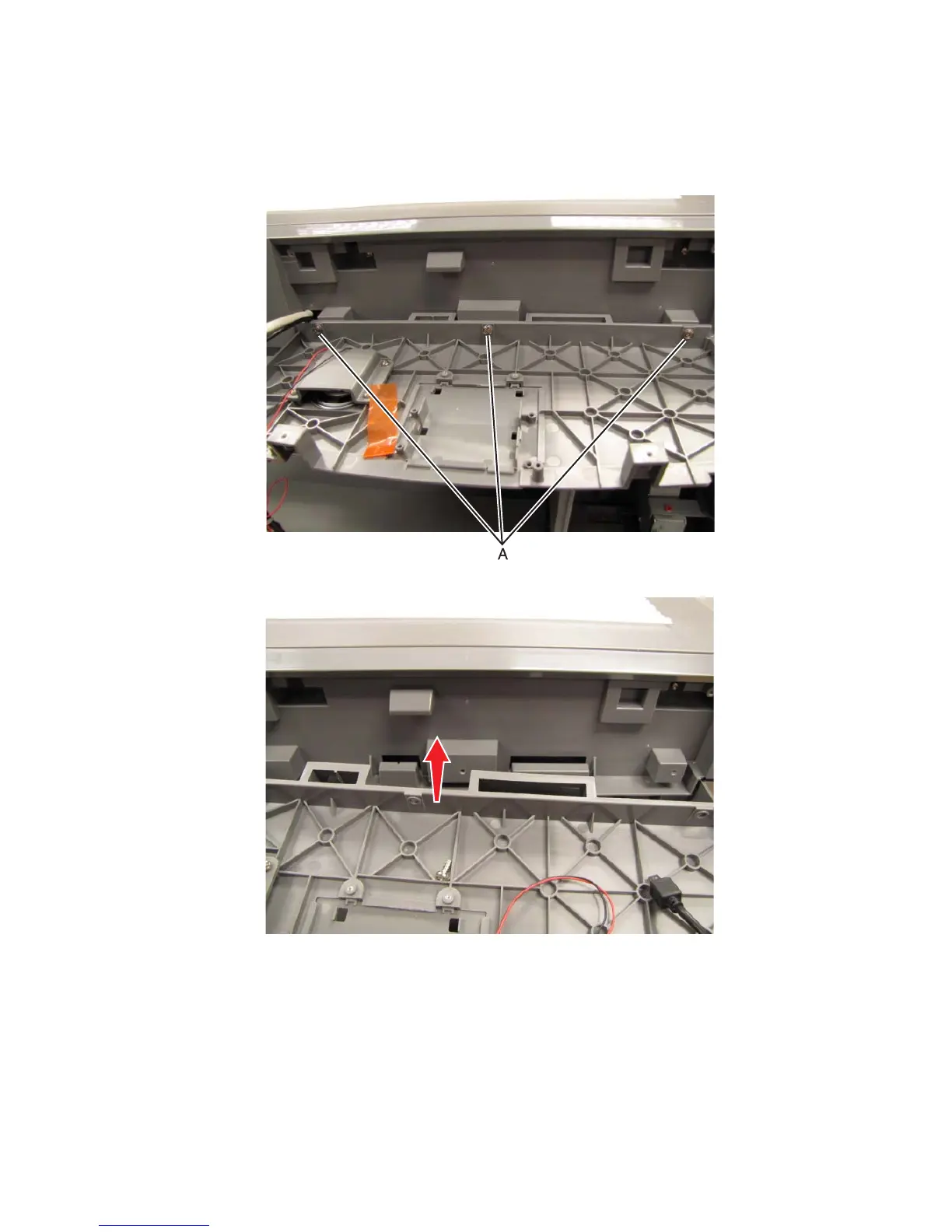

1. Remove the op panel top cover.

2. Remove the three screws (A) that secure the op panel bottom cover to the flatbed assembly.

3. Lift the cover up and away from the flatbed assembly.
