4-102 Service Manual

7541-03x

Rear fan

1. Remove the high volt power supply. See “HVPS removal” on page 4-111.

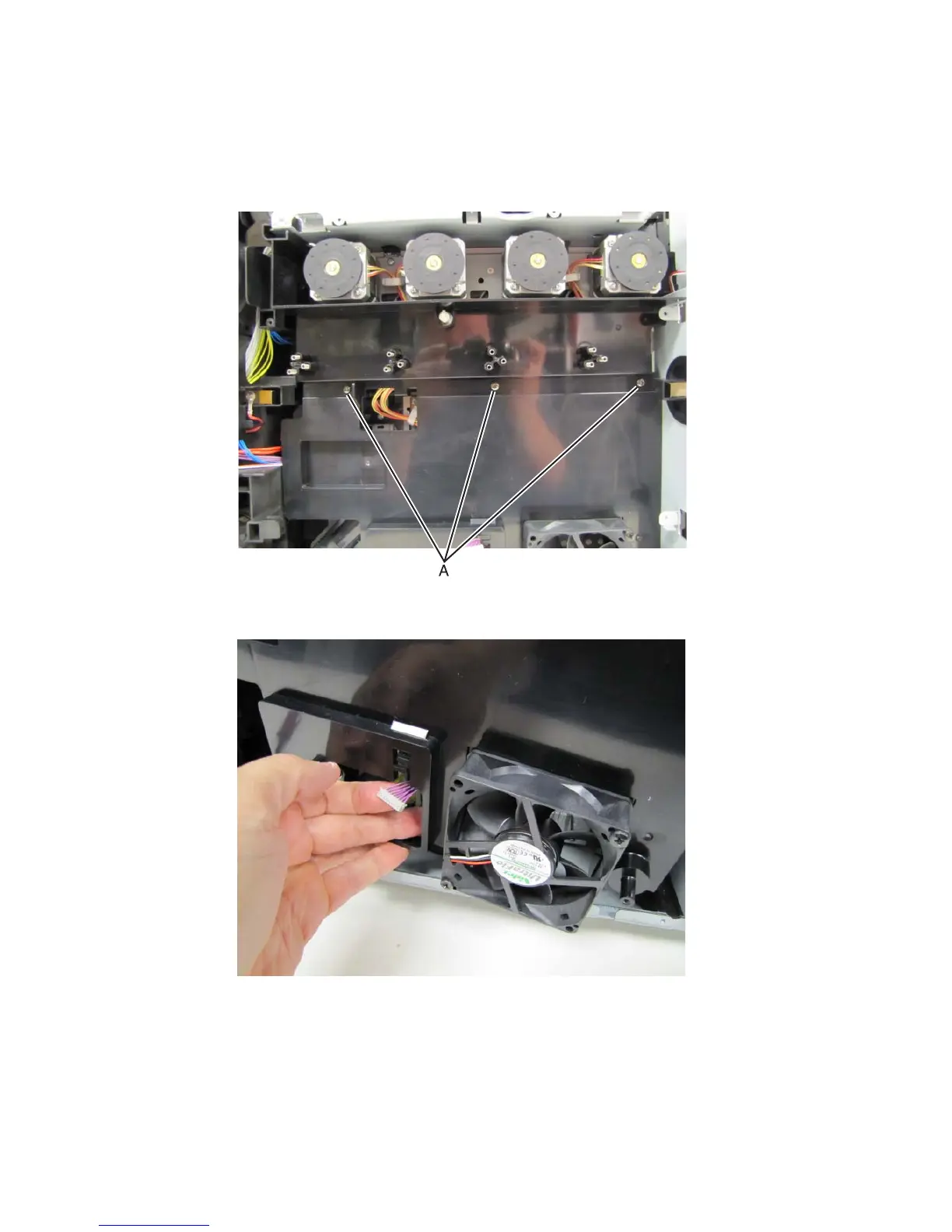

2. Remove the three screws (A) securing the fan mounting duct to the printer.

3. Route the high volt power supply cable the fan mounting duct.
