Repair information 4-149

7541-03x

Scan sensor cover (not a fru)

1. Remove the ADF main feed unit.

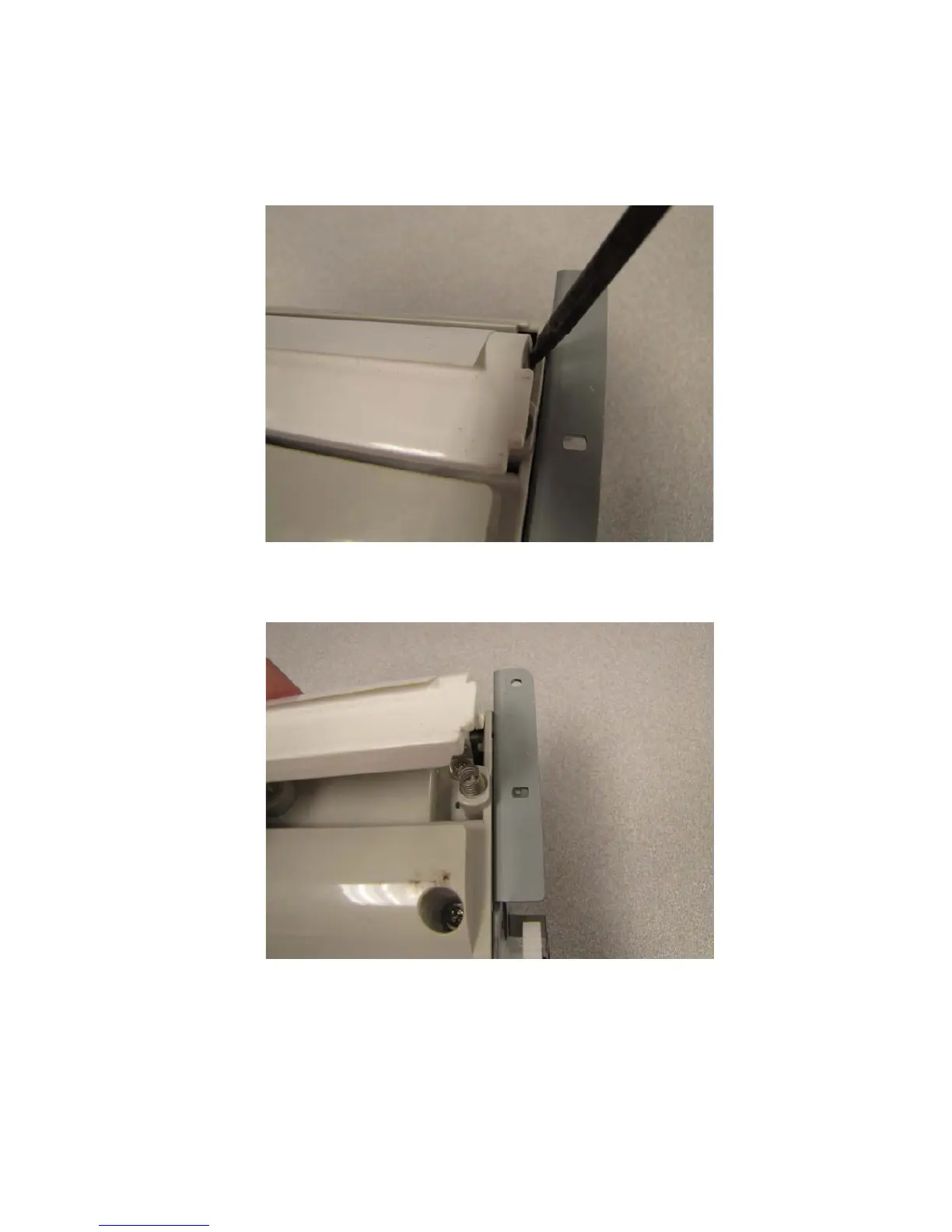

2. Use a flatblade screwdriver to remove the guide on the bottom of the ADF main feed unit.

3. Pull the guide out of the ADF main feed unit.
