4-150 Service Manual

7541-03x

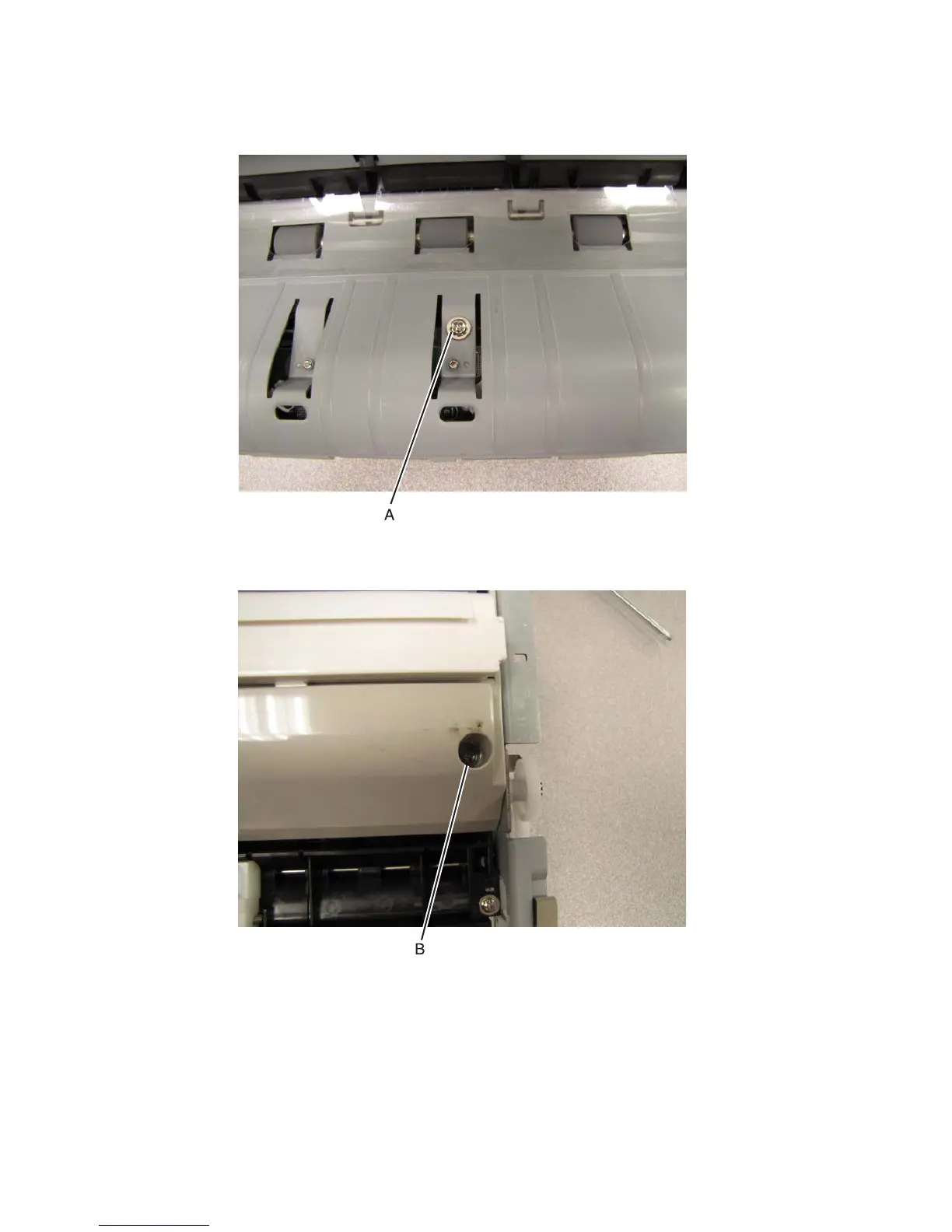

4. Remove the screw (A) securing the scan sensor cover to the ADF main feed unit.

5. Remove the screw (B) securing the scan sensor cover to the ADF main feed unit.
