Repair information 4-167

7541-03x

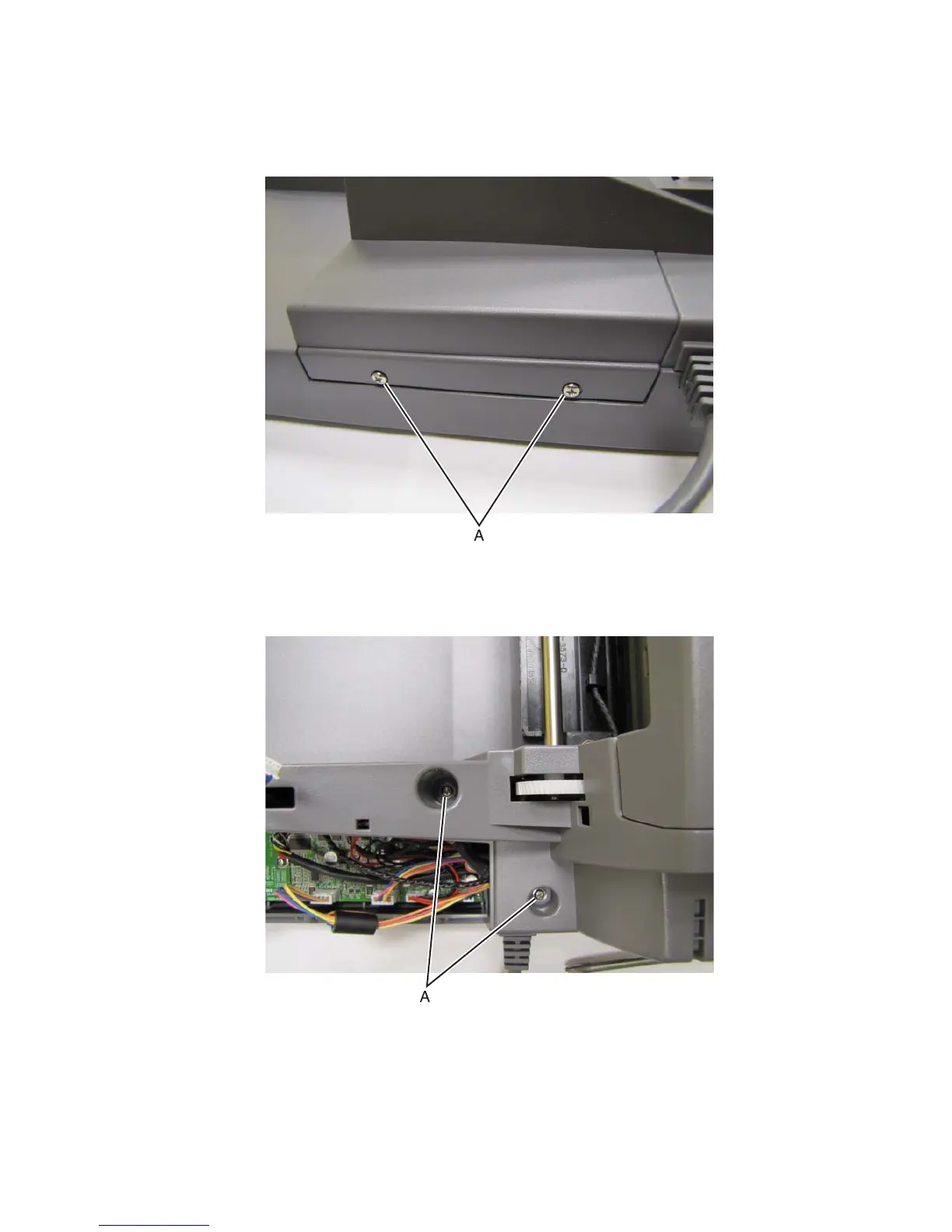

ADF relay card cover

1. Remove the two screws (A) securing the relay cover to the ADF assembly.

Left ADF cover

1. Remove the two screws (A) on top of the left ADF cover.
