4-168 Service Manual

7541-03x

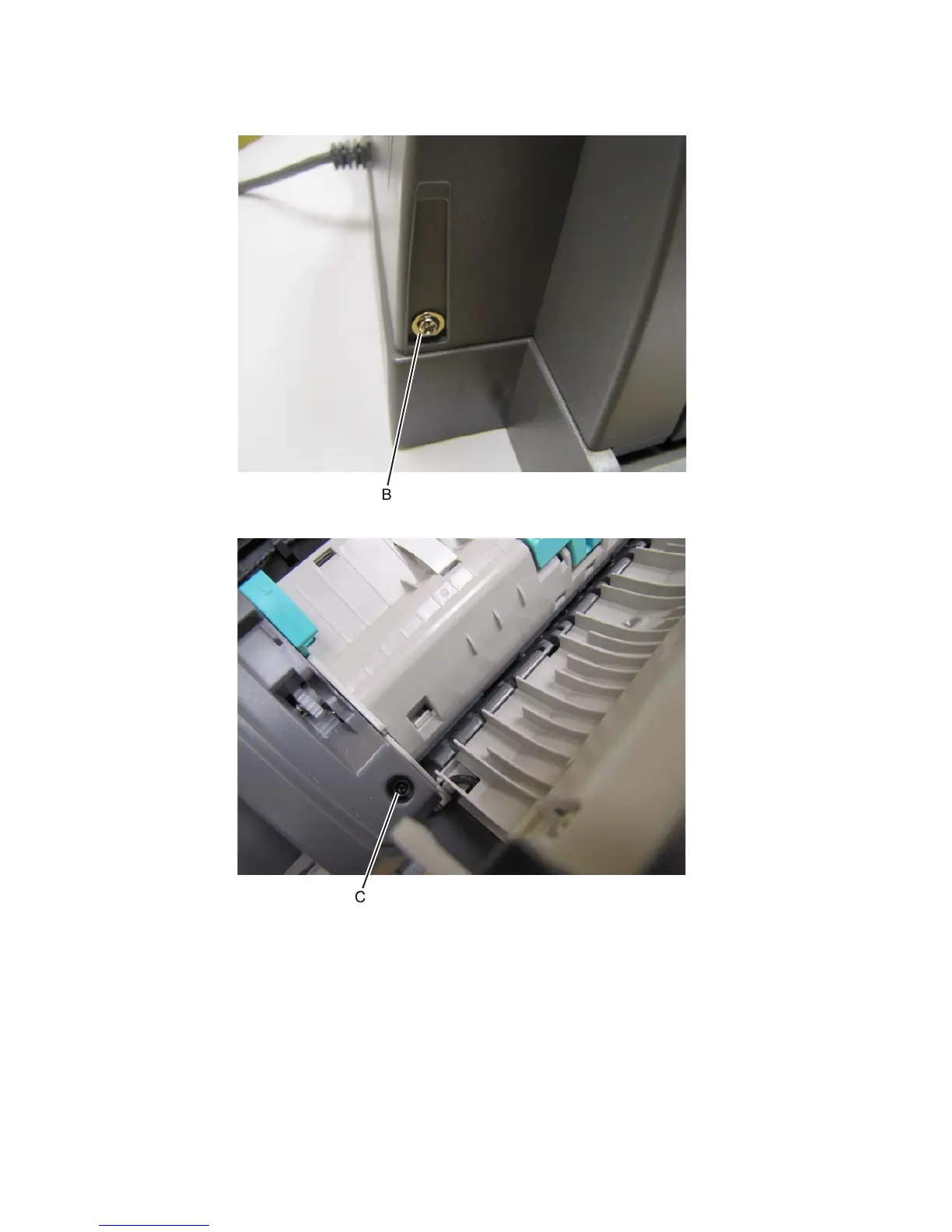

2. Remove the screw (B) in the rear of the left ADF cover.

3. Lift the ADF top cover and remove the screw (C).
