Lexmark X925 - ADF Main Feeder

4-134 Service Manual
7541-03x

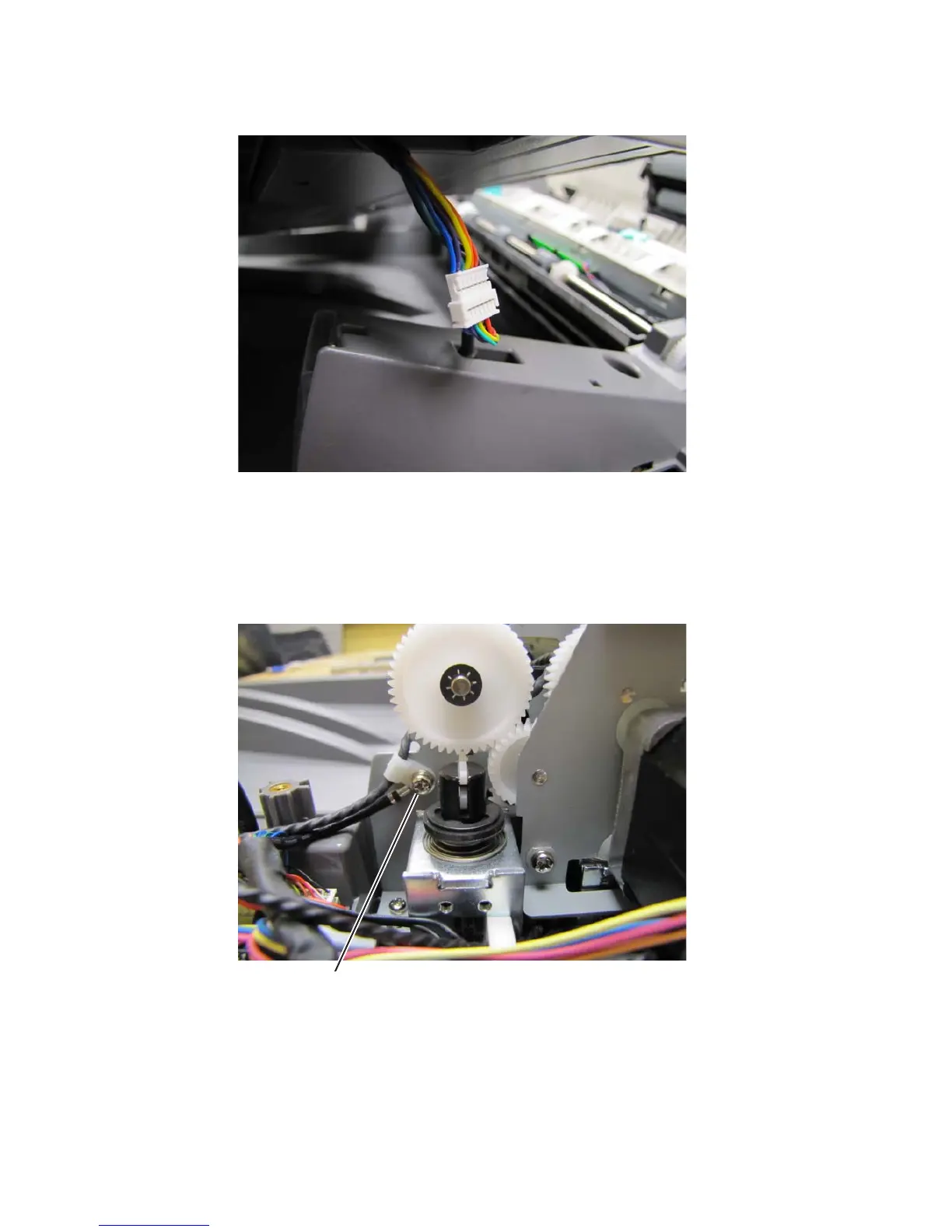

4. Lift the ADF input tray and disconnect the tray paper present sensor cable.
ADF main feeder
1. Remove the left ADF cover.
2. Remove the right ADF cover.
3. Disconnect the cables from the ADF relay card.
4. Disconnect the ground wire (A) from the ADF main feeder.
5. Remove the ADF motor frame assembly.
A
