Repair information 4-135

7541-03x

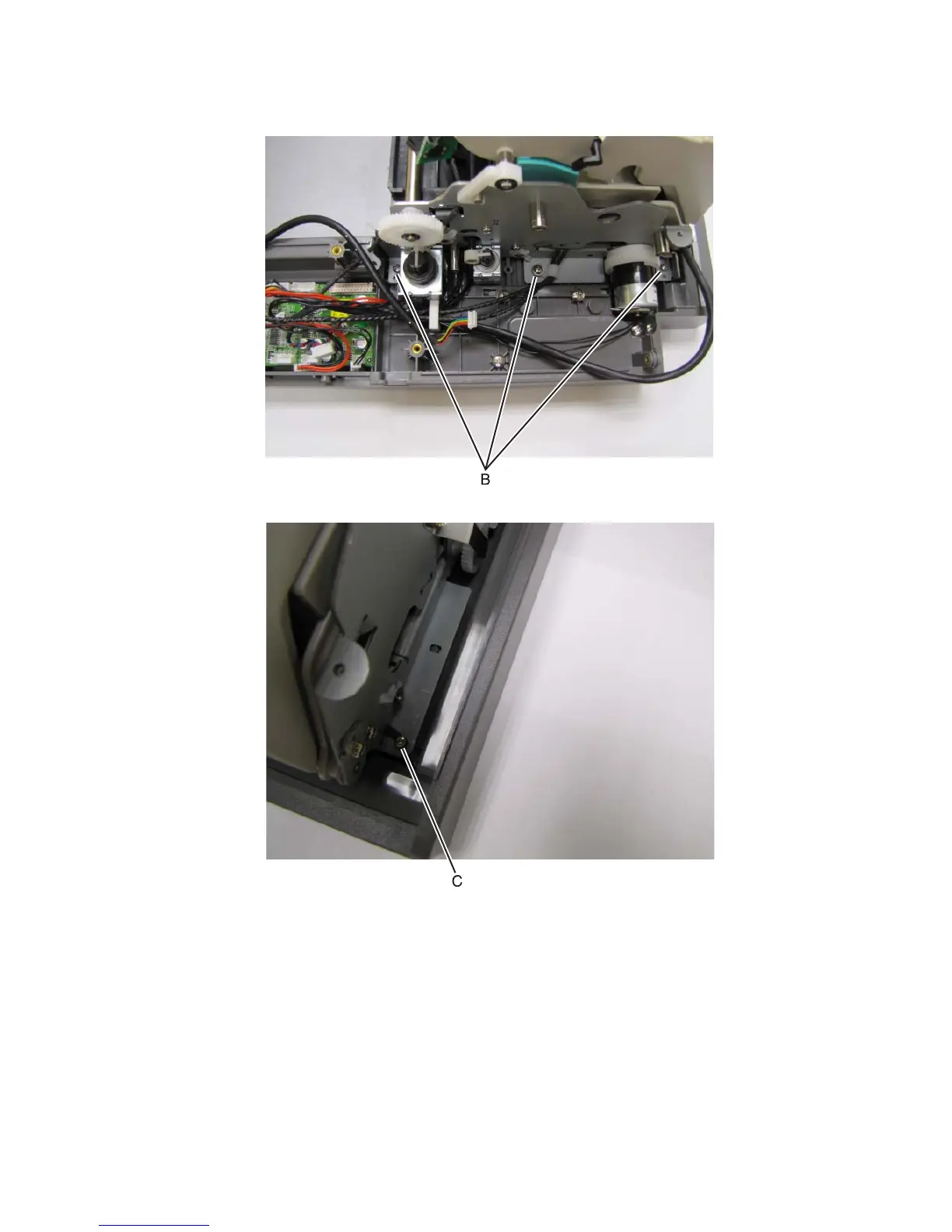

6. Remove the three screws (B) securing the right side of the ADF main feeder to the top flatbed cover.

7. Remove the screw (C) securing the right side of the ADF main feeder to the top flatbed cover.
