Lexmark X925 - Door Interlock Switch Removal

Repair information 4-89
7541-03x

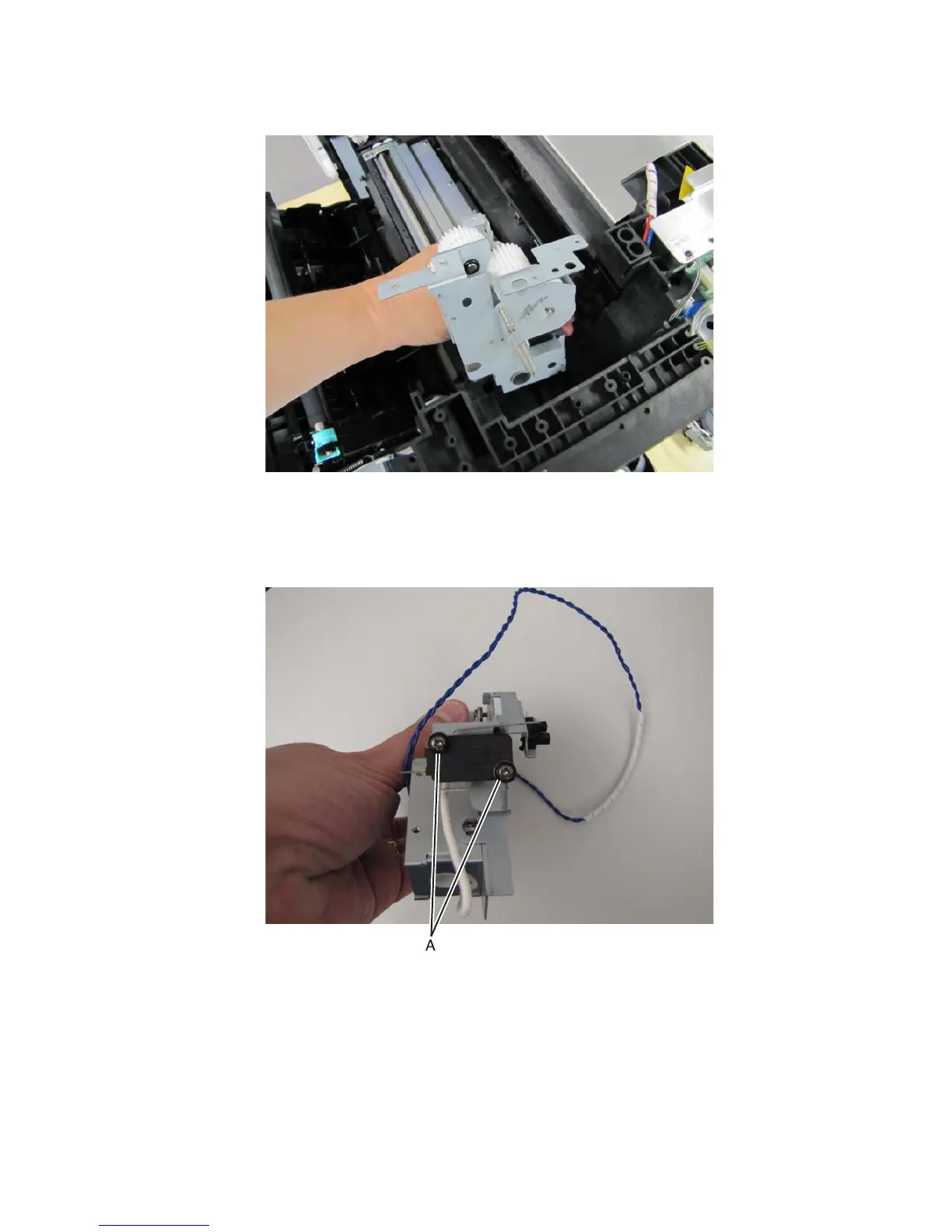

22. Lift and remove the gear train portion of the sub drive unit out of the printer.
Door interlock switch removal
1. Remove the sub drive unit. See “Sub drive unit removal” on page 4-84.
2. Remove the two screws (A) securing the door interlock switch to the sub drive unit.
