Lexmark X925 - Page 270

4-88 Service Manual
7541-03x

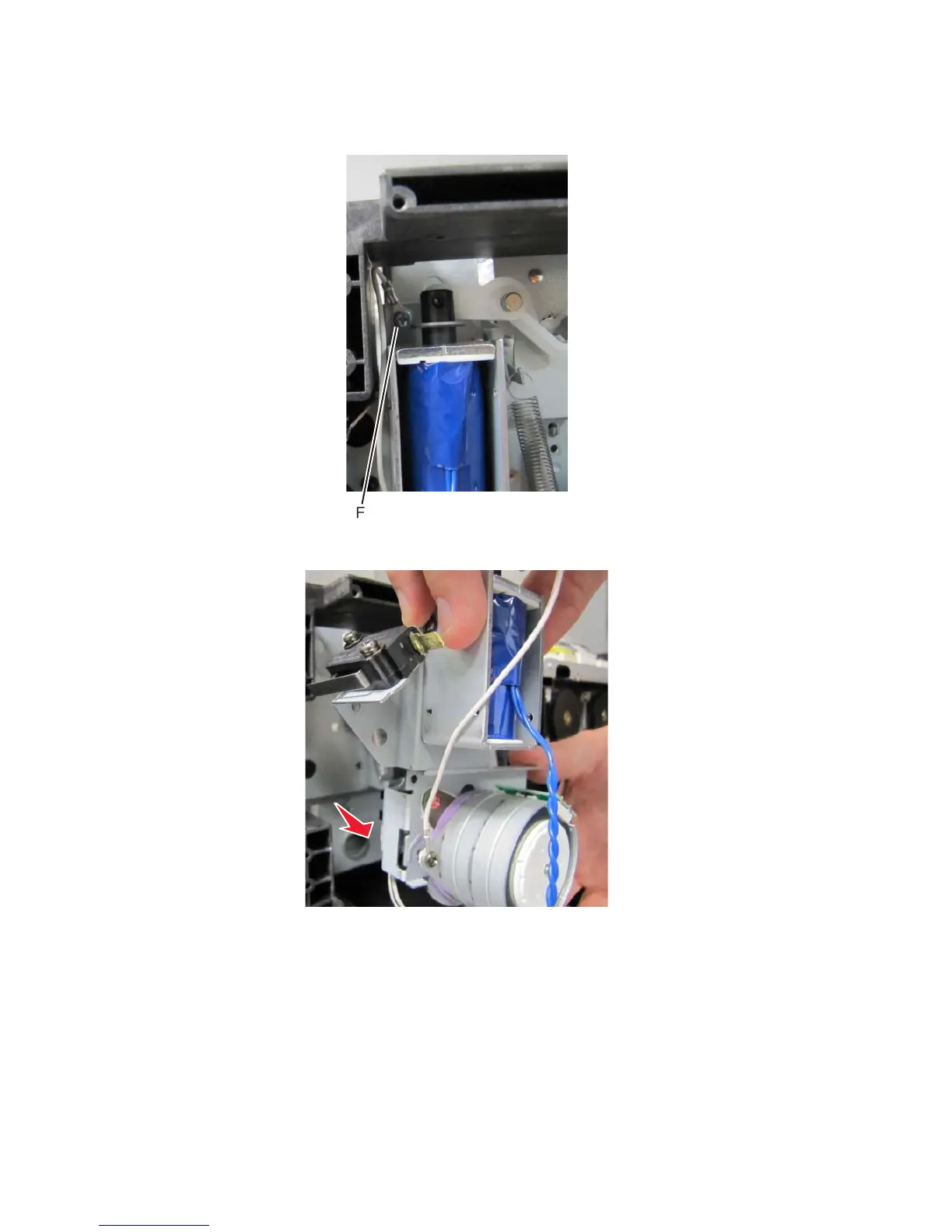

19. Remove the screw (F) at the top of the sub drive unit.
Note: If you are replacing the unit, place the ground wire on the new unit.
20. Pull the portion of the unit with the motor, and sensors out of the machine.
21. Disconnect the fuser entry sensor cable.
