4-42
Servi
ce
Manual
7541-0
3x
Pape
r siz
e s
ensor
re
mov
al
This i
s the paper size sen
sor for
t
he top MPF tray.
1.
Remove the standa
rd paper tr
ay.
2.
Remove the
MPF p
aper t
ray.
3.

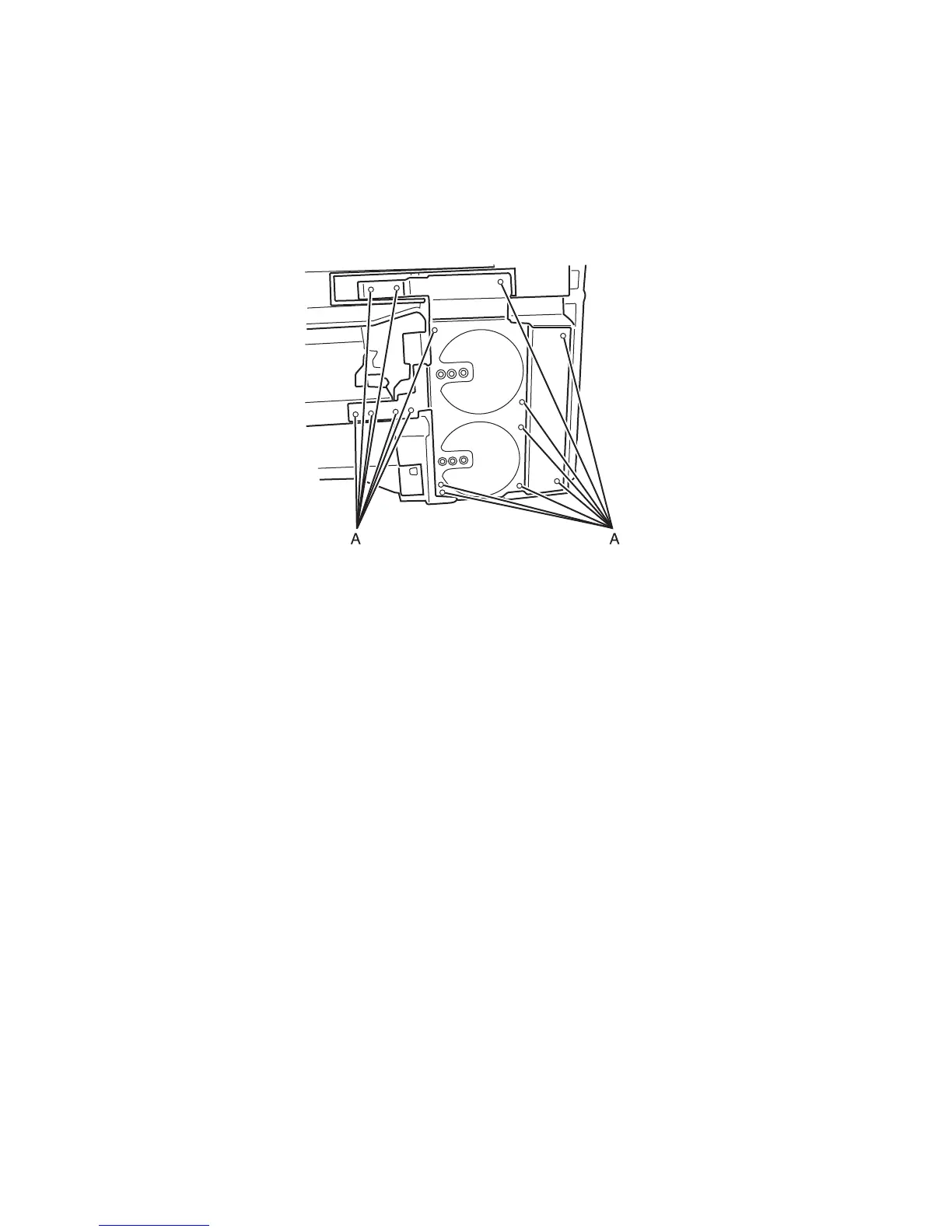

Remove the 15 screws (A
) securi
ng the sensor
suppor
t frame t
o
the pr
int engi
ne frame.
4.
Remove the pape
r size sensors
.
223
