Lexmark X925 - FB Hinge; Tray Paper Size Sensors

4-138 Service Manual
7541-03x
FB hinge
1. Remove the ADF unit from the scanner assembly.
2. Place the ADF unit upside down on a non-marring surface.

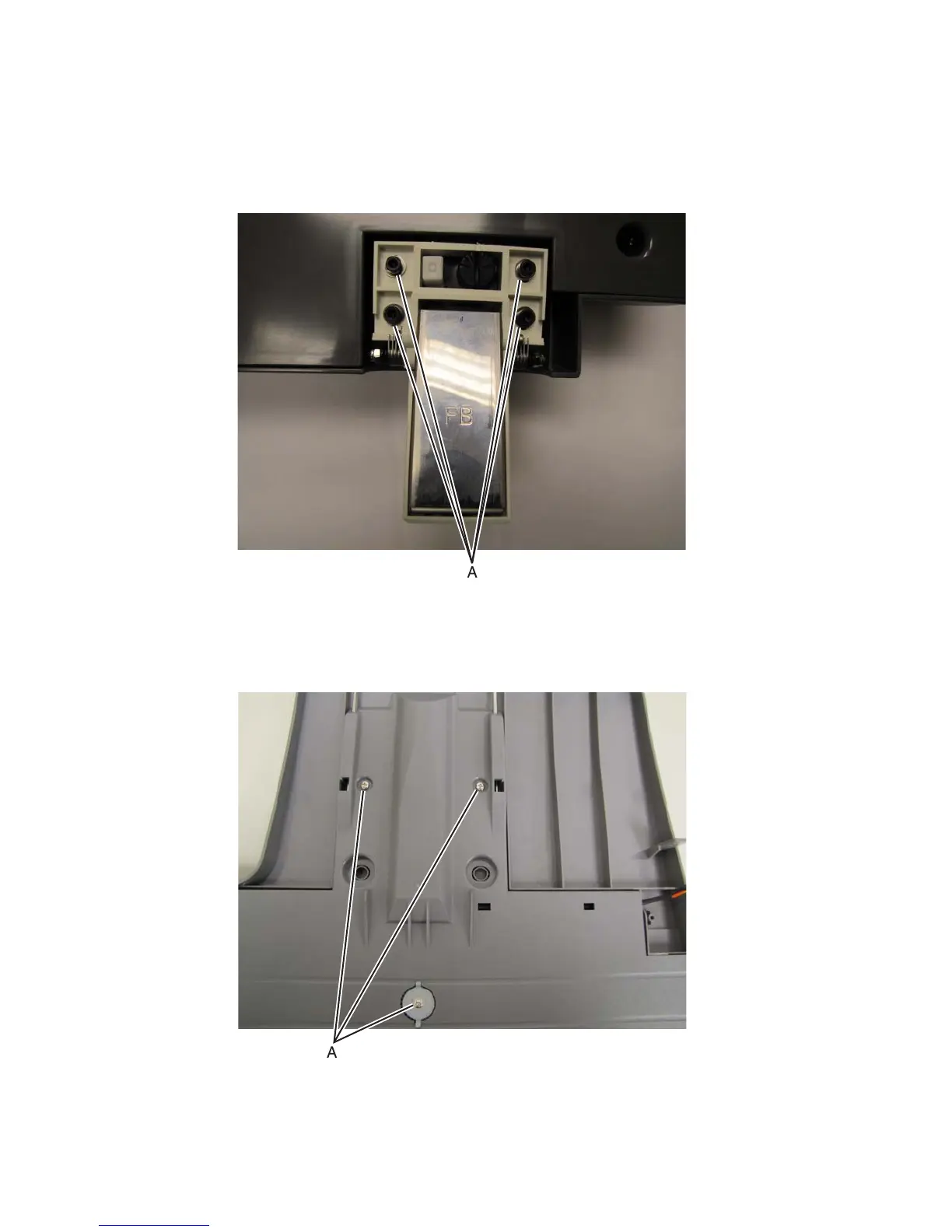

3. Remove the four screws (A) the secure the hinge to bottom of the flatbed cover.
Tray paper size sensors
1. Remove the ADF input tray from the ADF unit.
2. Remove the three screws (A) fastening the tray bottom to the ADF input tray top.
