Repair information 4-127
7541-03x
Optical paper size sensor
1. Remove the flatbed unit from the printer.
2. Place the flatbed unit facedown on a non marring surface, and remove the bottom shield.
3. Disconnect the affected sensor’s cable from the ICC board.
4. Turn the flatbed rightside up.
5. Remove the flatbed upper cover.

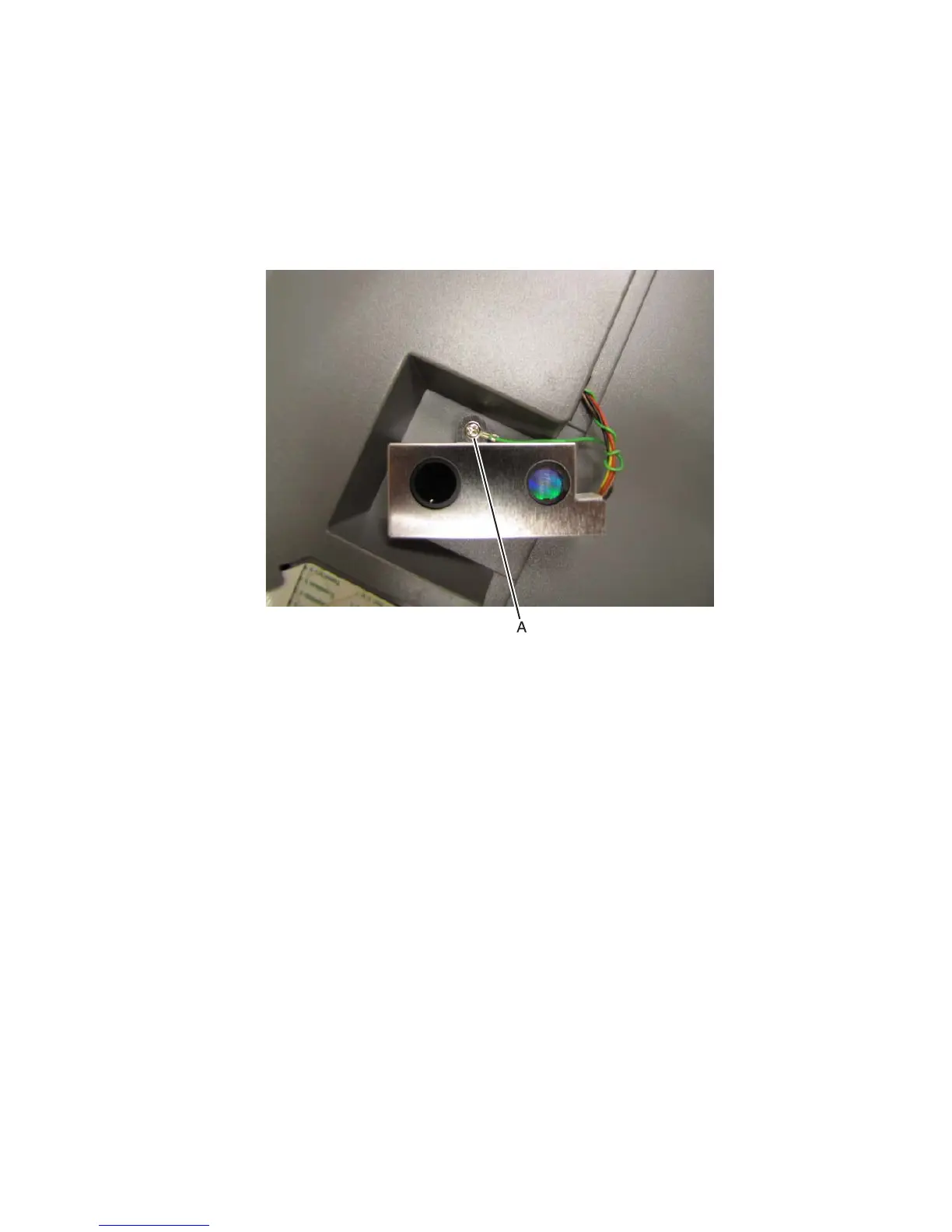

6. Remove the screw (A) securing the affected sensor to the flatbed assembly.
7. Lift the sensor and thread the sensor cable through the bottom of the flatbed assembly.
