Repair information 4-139

7541-03x

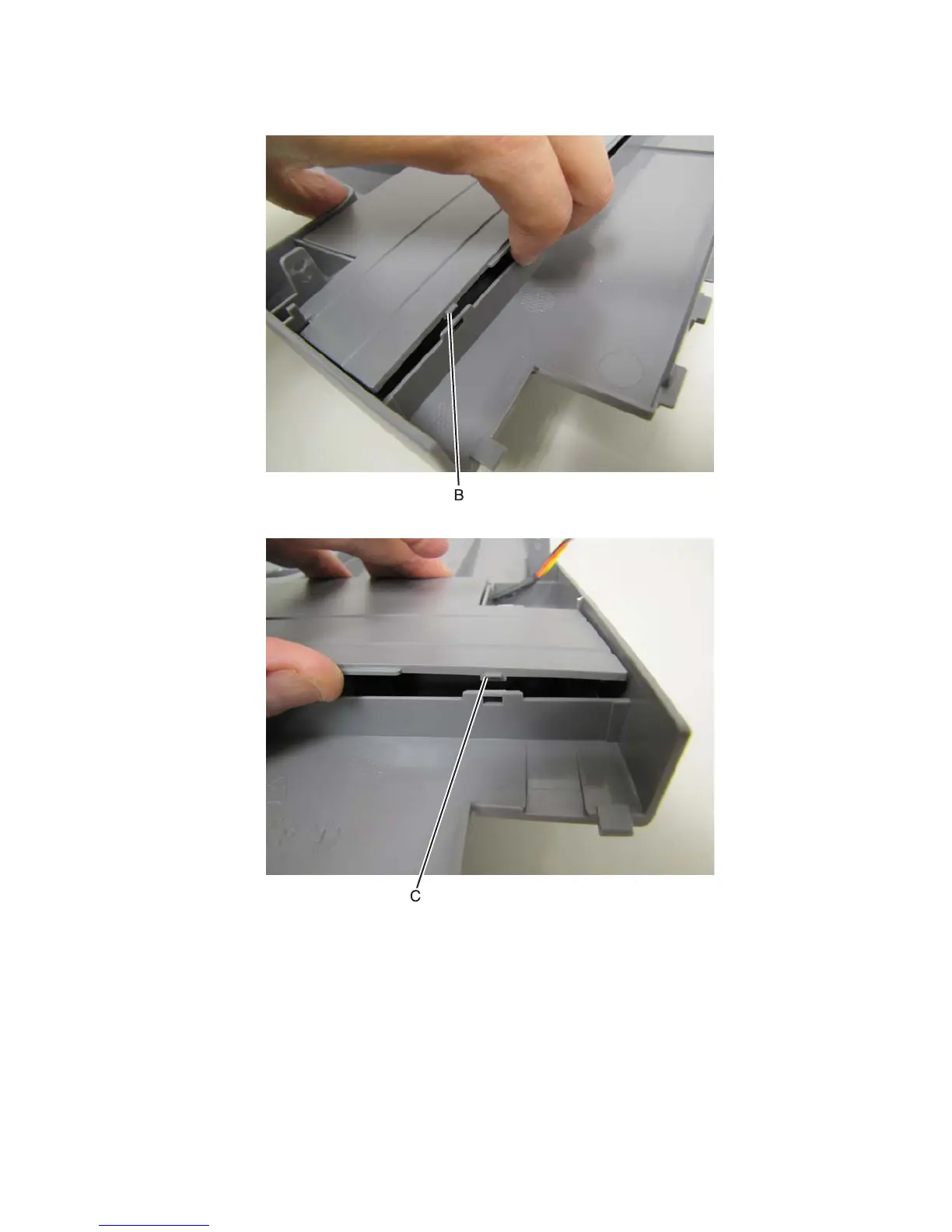

3. Release the tab (B) securing the tray top to the tray bottom.

4. Release the tab (C) securing the tray top to the tray bottom.
