4-140 Service Manual

7541-03x

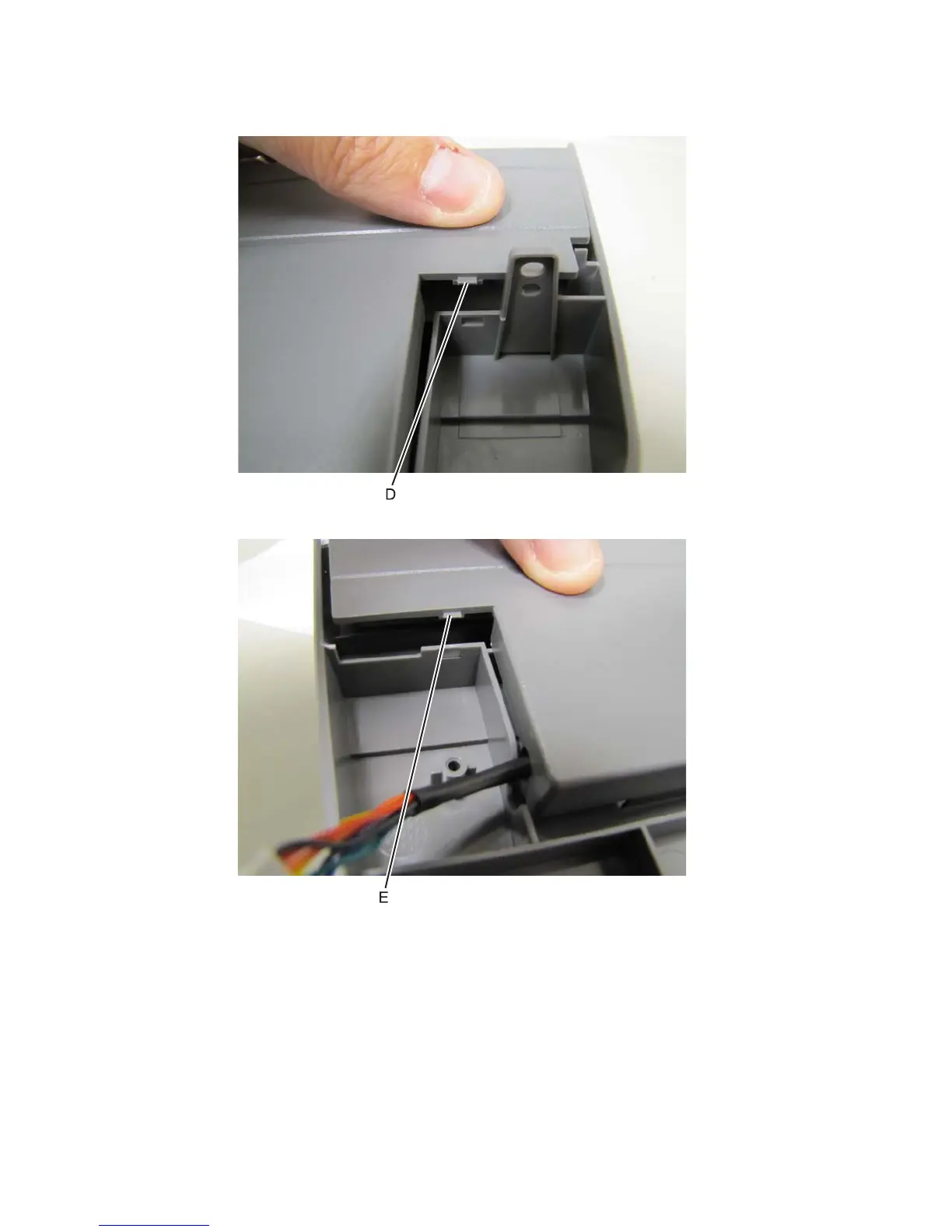

5. Release the tab (D) securing the tray top to the tray bottom.

6. Release the tab (E) securing the tray top to the tray bottom.

7. Pull the tabs (F) back to release the width sensor cable from the tray bottom.
