Repair information 4-141

7541-03x

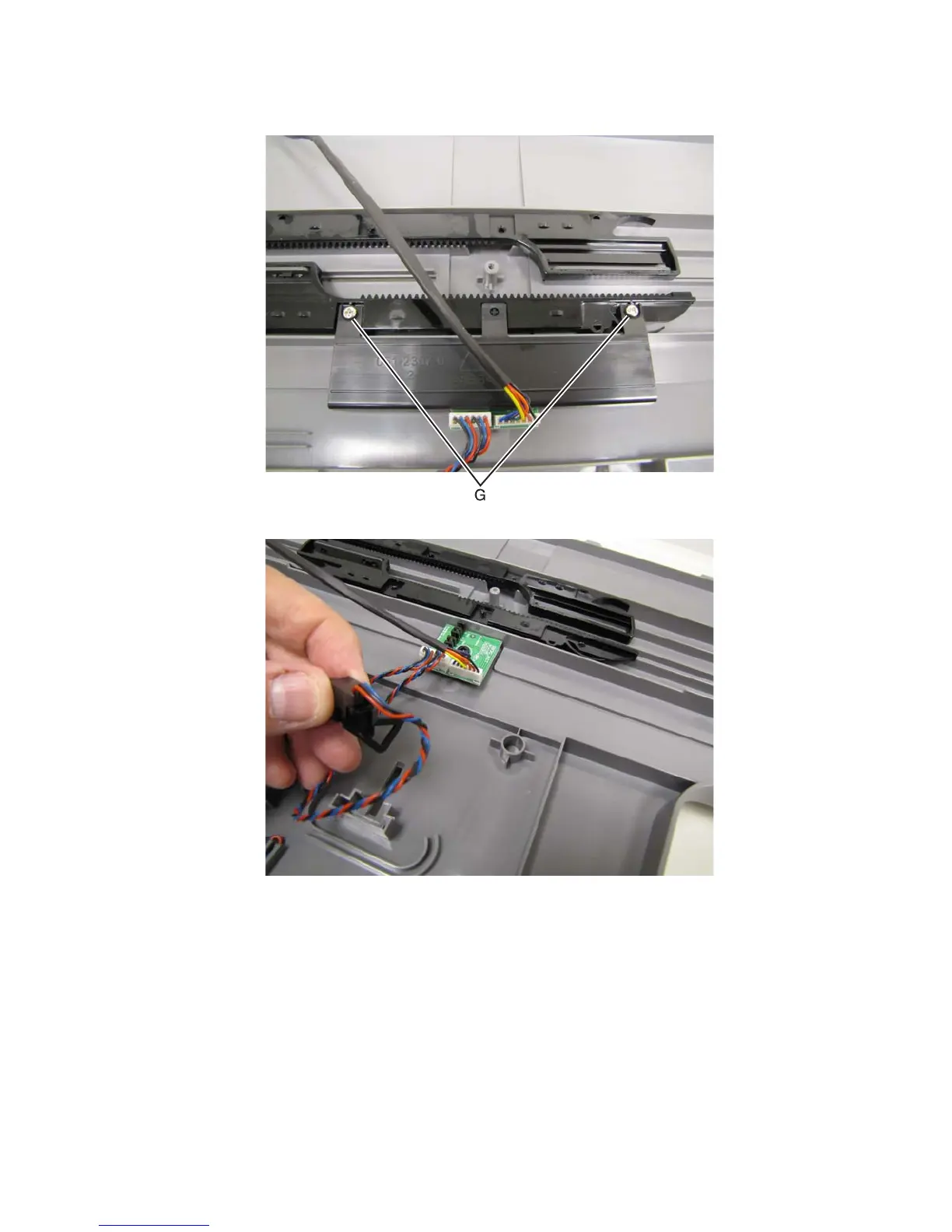

8. Remove the two screws (G) securing the paper width actuator to the rack gear.

9. Remove the size sensors from the ADF input top.
