Repair information 4-169

7541-03x

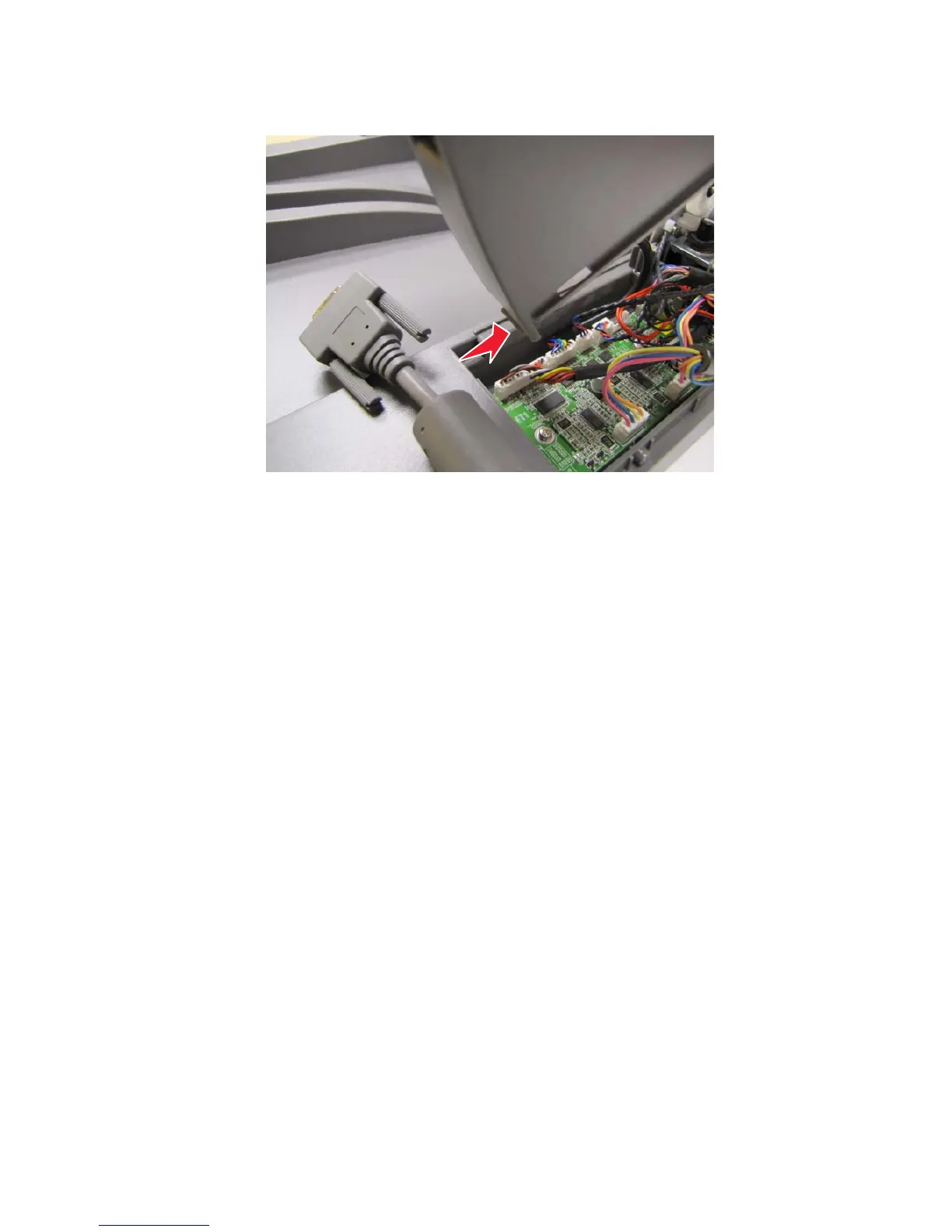

4. Lift the cover up, and slide the tab on the cover out of the ADF assembly.
