4-166 Service Manual

7541-03x

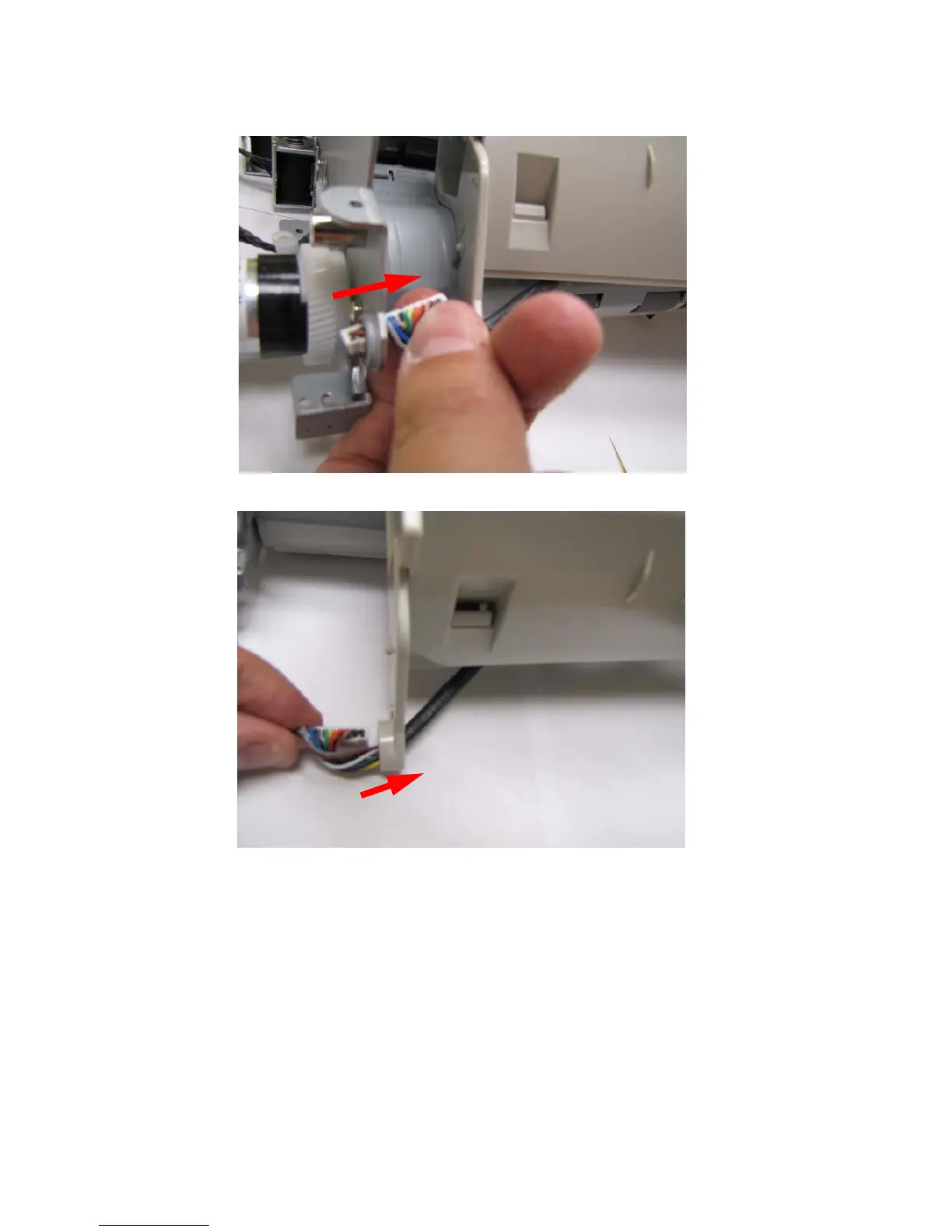

6. Carefully feed the sensor assembly cable through the ADF main feeder.

7. Carefully feed the sensor assembly cable through the ADF paper guide assembly.

8. Remove sensors, and hinges from the inner cover to place on the new cover.
