Repair information 4-147

7541-03x

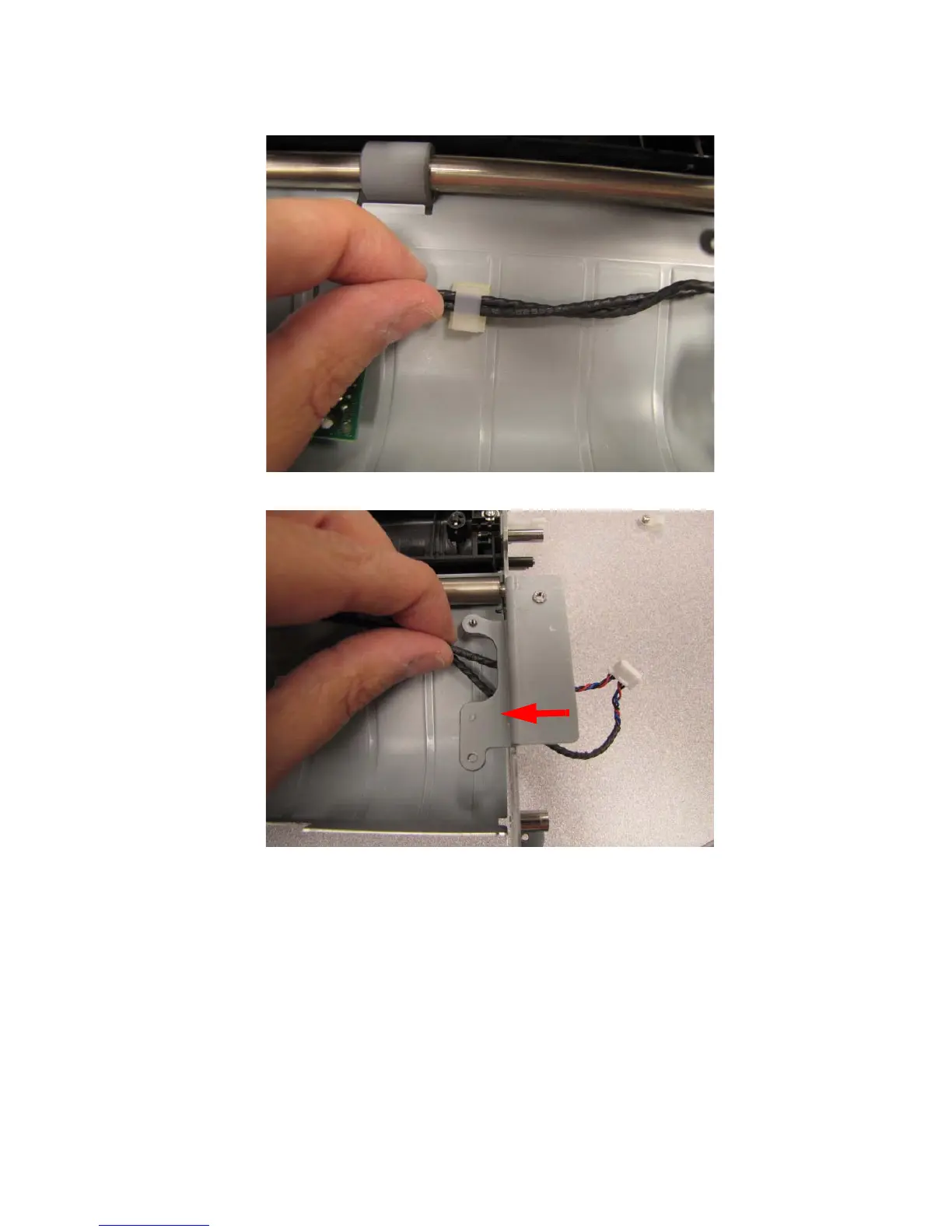

5. Pull the scan sensor cable through the clip on the ADF main feed unit.

6. Pull the sensor cable through the side of the ADF main feed unit.
